E Ticket 2D Barcode Scanner Mini Wireless MS3392 Chargeable 600mAh Li - Ion Battery

E Ticket 2D Barcode Scanner Mini Wireless MS3392 Chargeable 600mAh Li - Ion Battery

  • E Ticket 2D Barcode Scanner Mini Wireless MS3392 Chargeable 600mAh Li - Ion Battery
  • E Ticket 2D Barcode Scanner Mini Wireless MS3392 Chargeable 600mAh Li - Ion Battery
E Ticket 2D Barcode Scanner Mini Wireless MS3392 Chargeable 600mAh Li - Ion Battery
Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE, ROSH, FCC, IP65 Ect
Model Number: MS3392
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: one piece in one box
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs/ month
Contact Now
Detailed Product Description
Product: 2D Bluetooth Barcode Scanner Length: 60.0mm, Width: 37.8mm, Height:14.6mm
Weight: 30g Electrical: Power: DC5V Typical: 230mA DC5V
CPU: 32bit ARM CPU Data Storage: 100KB
Internal Battery: Chargeable 600mAh Li-ion Battery Barcode: 1d/ 2d
High Light:

mini bluetooth barcode scanner

,

2d barcode reader

E-ticket 2D/1D Mini Wireless Barcode Scanner MS3392

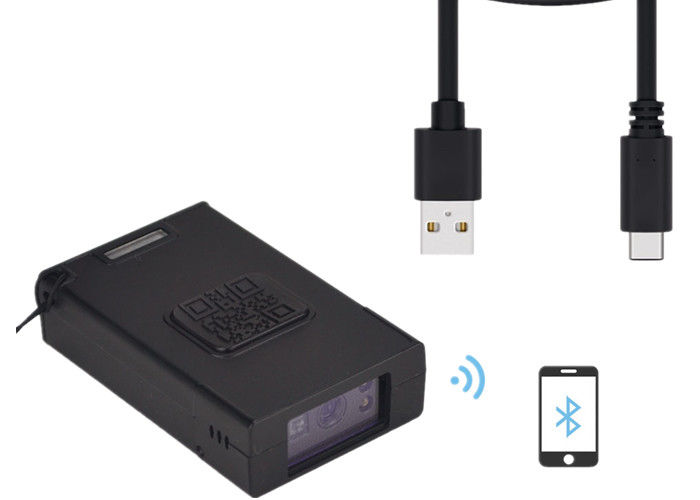

2D Bluetooth Barcode scanjacket MS3392 is small size and powerful new generation mini barcode scanner. It can combine with smartphone as professional data collection terminal. It can scan 1D, 2D barcode into your smart phone via bluetooth. By using MS3392 barcode scanjacket, you do not need to buy expensive, heavy PDA any more
It is an easy to use ,lightweight, and high performance barcode reader, It have dual field optics ,both high density and wide field in the same unit. Build in high volume Li-ion battery can read 20000 times when one seconds trigger. Glare reduction technology for reading barcode on shiny surfaces. Build in memory can save 10000pcs barcode without any connection.

2D bluetooth barcode scanjacket MS3392 support Bluetooth Human Interface Device ( H-I-D) and SPP mode, MS3392-Human Interface Device ( H-I-D) is designed for IOS system. It no need install any driver or software to scan barcode in Mobile Phone just pairing bluetooth one time. Another mode is MS3392-SPP is designed for Google Android smartphone. You just install Bluetooth Input driver to make barcode scanner as external keyboard. So It will compatible for any application in smart phone. This driver eliminate the work for system integration.




SpecificationMS3392 2D Bluetooth barcode reader

Mechanical

Length:60.0mm, Width: 37.8mm, Height:14.6mm

Weight30g
ElectricalPower: DC5V Typical: 230mA DC5V
CPU32bit ARM CPU
Data storage100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working modeBluetooth mode, USB mode, offline mode and RS232 mode(optional)
Scan modeManual mode, Continuous, Host, Sense mode
Ambient illuminationSunlight: Up to 9,000ft-candles/96,890 lux









Scanner performance

Sensor: CMOS 1.2 Megapixel(1280 x 960) gray scale

Optical Resolution: High Density Field: 960 x 640, Wide Field: 960 x 640

Field of View: High Density Field: 30° horizontal by 20° vertical, Wide Field: 50° horizontal by 33.5° vertical

Focal Point: High Density Field: approximately 100 mm, Wide Field: approximately 115 mm

Pitch: ± 60° (from front to back)

Skew: ± 60° from plane parallel to symbol (side-to-side) Rotational Tolerance: ± 180°

Print Contrast Res.: 25% (1D symbologies) or 35% (2D symbologies) absolute dark/light reflectance differential, measured at 650 nm.

Target Beam: Single, blue targeting bar







Battery power

Internal Battery: Changeable 600mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:


Continuous trigger

scanning interval

Decoding numberWorking time
1S118003.3hours
5S62008.6hours
10S590016.4hours

Charge time: About 1.5hours




Barcode Type

1D barcode: Code 39, Code 128,BC 412, I2 of 5,UPC/EAN, Codabar, Code 93,Pharma code, PLANET, Post Net, Japanese Post, Australian Post, Royal Mail,Intelligent Mail, KIX Code

Stacked code:PDF417, Micro PDF417, GS1 Databar(Composite & Stacked)

2D barcode: Data Matrix (ECC0-200),QR Code, Micro QR Code, Aztec Code







Decoding depth & Max. resolution

(1 mil = 0.0254 mm)

3 mil Code 393.7 to 5.9"(95-150mm)
7.5 mil Code 392.2 to 8.0"(55-205mm)
13 mil UPC2.0 to 10.8"(50-275mm)
4.2 mil Data Matrix3.7 to 4.5"(95-115mm)
5 mil Data Matrix3.7 to 5.1"(95-130mm)
6.3 mil Data Matrix3.1 to 6.3"(80-160mm)
10 mil Data Matrix1.6 to 7.7"(40-195mm)
20.8 mil Data Matrix1.6 to 9.4"(40-240mm)

Note: working ranges are a combination of both the wide and high density fields.

CommunicationClass 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional)
OSIOS, Android, Windows, Mac
CertificateCE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times).
Laser safetyIEC60825-1-2007, Class 1
Temperature

Operating: -20°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)

Humidity5% to 90% (non-condensing)

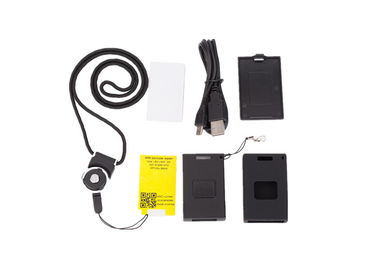

Accessories

1X MS3392-H

1X USB cable

1X scanner jacket

1X Lanyard

1X 3M double faced adhesive tape for Jacket
