Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE, FCC, RoHS
Model Number: MS4200
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pcs into a retail box, 50pcs into a Carton
Delivery Time: 1-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 10000 pieces per month
Contact Now
Detailed Product Description
Type: 2D Barcode Scanner Interface Type: USB, RS232
Scan Element Type: CMOS Image: 640 Pixels (H)x 480 Pixels (V)
Scan Speed: 200 Scans/sec Dimensions: 49mm×38mm×20mm(L×H×D)
Weight: 37g Voltage: DC 5V
Color: Black Warranty: 1 Year
High Light:

id and passport scanner

,

passport barcode scanner

High Speed Wired 1D 2D USB Auto Scan Barcode Reader Scanner for Supermarket



Features and benefits:
l Fast speed sensor
l Industrial leading scan platform
l High speed, Omni directional scanning
l Read all mainstream 1D/2D barcodes
l Read barcode off cell phone screens
l Miniature- easy to integrate
l Extremely easy to use
l Support RS232 and USB interface

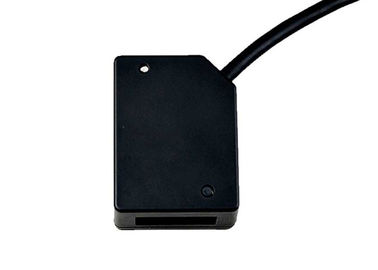

MS4200 new generation barcode scaner, with fixed mount and compact design, is suitable for all kinds of Kiosk, ATM, ticket terminal, medical device , access control machine for embedded usage.



With infrared sensor, MS4200 scanner can accurately detect and read the barcode, and also save power at the same time, only when a barcode appear, the illumination light will be on and the scanner begins to wor. This function makes the scanner more durable and reliable.

Wired 1D 2D USB Auto Scan Barcode Reader Scanner for Supermarket High Speed 0





Physical Characteristics
Dimensions: 49mm×38mm×20mm(L×H×D)
Weight: 37g
Voltage and Current: 5 VDC +/-10% @ 400 mA
Performance Characteristics
Image (Pixels): 640 pixels (H)x 480 pixels (V)
Light Source: Aiming: 617 nm LED; illumination: 6500K LED
Field of View: 40° (H) x 26° (V)
Roll / Pitch / Yaw: 360°, ±65°, ±60°
Print Contrast: 25% minimum reflective difference
Symbology Decode Capability
1-D: UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
2-D: PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
Motion Tolerances: up to 25 in. (63.5 cm) per second
Interfaces Supported: USB, RS232
User Environment
Operating Temperature: 32° to 122° F / 0° to 50° C
Storage Temperature: -40° to 158° F / -40° to 70° C
Humidity: 5% to 95%, non-condensing
Drop/Shock Specifications: Withstands 10Gs 0.06" double amp
Ambient Light Immunity: Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
Decode Ranges
Symbol & Density Range
Code 39 (5 mil) 50mm-120mm
100%UPCA (13 mil) 20mm-300mm
Code 39 (20 mil) 25mm-340mm
PDF417 (6.8mil) 30mm-120mm
DataMatrix (10mil) 20mm-120mm
QR Code (20mil) 15mm-240mm
Resolution 1D Code 39 4.8mil (0.122mm)
Resolution 2D Data Matrix 6.6mil (0.168mm)
Performance may be impacted by bar code quality and environmental conditions



Applications:
Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, Lottery, Banking, etc.
