| Product Name: | Shopping Mall 2d Barcdoe Reader Industrial Rugged Cheap Mobile 2d Barcode Reader | Material: | TPU+PC For Barcode Reader， Genuine Leather For Glove |
|---|---|---|---|
| Advantage: | Handfree With Glove To Improve Working Efficiency | Application: | Logistics Industry , Inventory , Libary , Hospital Ect |
| Compatibility: | IOS , Android， Windows Smartphones Or PC | Battery Capacity: | 550mah， Last 8 Hours+ |
| Drop Test Level: | IP65 | Color: | Black |
| High Light: | glove barcode reader,warehouse barcode scanner |
||

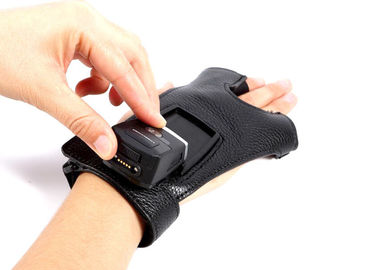

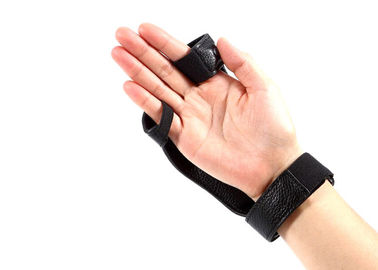

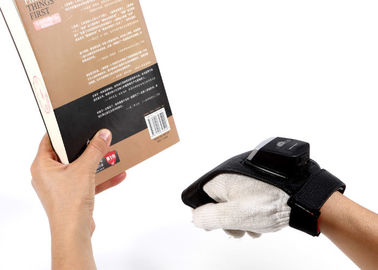

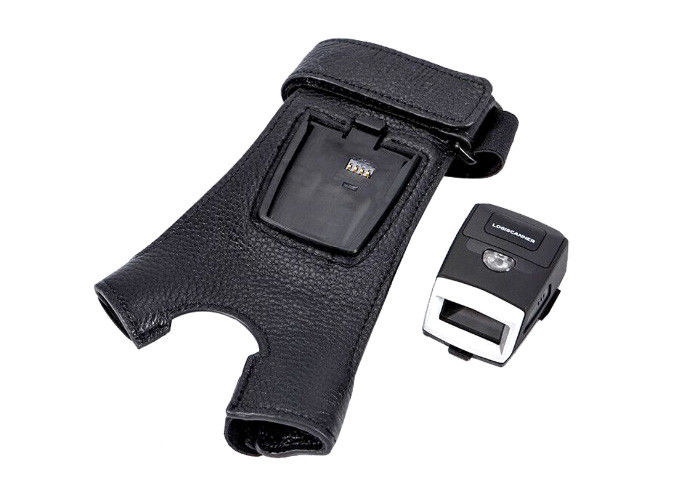

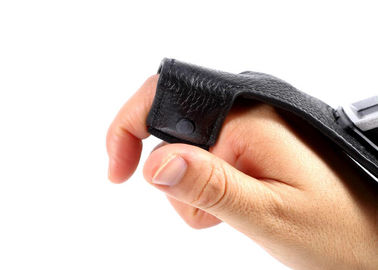

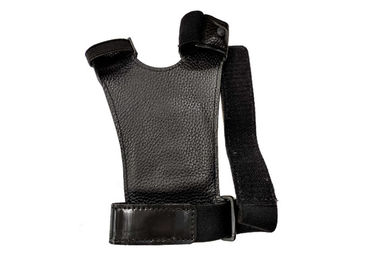

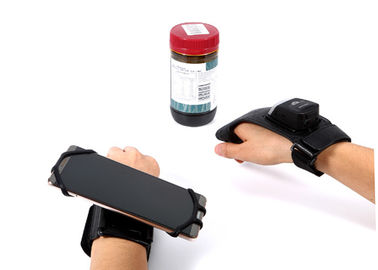

Shopping mall 2d barcdoe reader industrial rugged cheap mobile 2d barcode reader
GS02 is the upgrading version of finger trigger glove scanner , more than 10 million scanning button lifespan, with seperate charging cradle , such features make it mostly suitable for Logistics warehouse / counter picking / automotive industry and so on .
| Product name | Wearable Ring 2D Scanner | ||||||||||||||
| Model name | FS02P | ||||||||||||||
|
Dimensions |
Length:55.0mm, Width: 39.2mm, Height:51.2mm |
||||||||||||||
| Weight | 65grams | ||||||||||||||
| Electrical | Power: DC5V Typical: 300mA DC5V | ||||||||||||||
| CPU | 32bit ARM CPU | ||||||||||||||
| Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). | ||||||||||||||
| Working mode | Bluetooth mode, offline mode and RS232 mode(optional) | ||||||||||||||
| Scan mode | Manual mode, Continuous, Host, Sense mode | ||||||||||||||
| Ambient illumination | 0～107,639 lux | ||||||||||||||
|
Scanner performance |
Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED 660nm red LED Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28° Contrast: ≥20% |
||||||||||||||
|
Battery power |
Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
Charge time: About 2 hours |
||||||||||||||
|
Barcode Type |
1D |
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes |
|||||||||||||
|
2D |
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
||||||||||||||
| Decoding depth & | Code 39 | 51mm -162mm (5mil); | |||||||||||||
|
Max. Resolution (1 mil = 0.0254 mm) |
Code 128 | 63mm -127mm (5mil); |
| PDF417 | 63mm -160mm (6.6mil); | |
| PDF417 | 45mm - 228mm (10mil); | |
| 100%UPC | 50mm -317mm (13mil); | |
| Code 39 | 50mm - 495mm (20mil); | |
| Data Matrix | 38mm - 343mm (20mil); | |
| QR Code | 38mm -279mm (20mil). | |
| Communication | Class 3 Bluetooth HID, SPP, BLE(optional) with 20M distance, RS232 cable(optional) | |
| OS | IOS, Android, Windows, Mac | |
| Certificate |
CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times). Utility Model Patent No.: ZL201420211350.8 |
|
| Laser safety | IEC60825-1-2007, Class 1 | |
| Temperature |
Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) |
|
| Humidity |
5% to 90% (non-condensing) |
|
