2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application

  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
  • 2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application
Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE. ROHS. FCC
Model Number: TS02
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: Retail box/ OEM box
Delivery Time: sample in stock,mass for 2-5 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PAYPAL
Supply Ability: 1000000PCS per year
Contact Now
Detailed Product Description
Type: 2D Outdoor Qr Code Reader With Hand-free Shape Design For Warehouse And Distribution Application Rugged Material: PC Material+Plus A Silicon Cover
Feature: Touch Scan Compatibility: HID / SPP / USB Mode, It Can Connect With Android & IOS & Windows System
Application: Warehouse, Logistic, Store Ect Advantage: Light,Tiny , Rechargable And Handfree
Weight: 35G Internal Battery: Rechargeable 500mAh Li-ion Battery
Wroking Time: 8-10 Working Hours After Full Charge Working Mode: Bluetooth Mode, Offline Mode
High Light:

small barcode scanner

,

micro barcode scanner

2D outdoor qr code reader with hand-free shape design for warehouse and distribution application





TS02 is Ring Bluetooth Scanner 2D with touch scanning , 500mAh battery and bluetooth charging cradle plus silicon cover will be its main features, such features make it mostly suitable for warehouse counter work or supermarket .





PRODUCT SPEC SHEET FOR TS02



Product name Wearable Ring 2D Scanner
Model name TS02
Dimensions Length:35.2mm, Width: 32mm, Height:30.1mm
Weight 35grams
Electrical Power: DC5V Typical: 300mA DC5V
CPU 32bit ARM CPU
Data storage 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode Bluetooth mode, offline mode
Scan mode Manual mode, Continuous, Host, Sense mode
Ambient illumination 0~107,639 lux







Scanner performance

Sensor Type: 640 (horizontal) × 400 (vertical) pixels

Light: 610nm LED

660nm red LED

Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28°

Contrast: ≥20%











Battery power



Internal Battery: Rechargeable 500mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:



Continuous trigger

scanning interval

Decoding number Working time
1S 16344 4.5hours
5S 7666 10.6hours
10S 4531 12.6hours

Charge time: About 2 hours















Barcode Type











1D

UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,

Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of

5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128

Emulation Mode for UCC/EAN Composite Codes



2D

PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post,

Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Decoding depth & Code 39 51mm -162mm (5mil);






Max. Resolution

(1 mil = 0.0254 mm)

Code 128 63mm -127mm (5mil);
PDF417 63mm -160mm (6.6mil);
PDF417 45mm - 228mm (10mil);
100%UPC 50mm -317mm (13mil);
Code 39 50mm - 495mm (20mil);
Data Matrix 38mm - 343mm (20mil);
QR Code 38mm -279mm (20mil).
Communication Class 3 Bluetooth HID, SPP, BLE with 20M distance
OS IOS, Android, Windows, Mac
Certificate

CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times).

Utility Model Patent No.: ZL201420211350.8

Laser safety IEC60825-1-2007, Class 1
Temperature

Operating: -20°C to 60°C (-4°F to 140°F);

Storage: -40°C to 70°C (-40°F to 158°F)

Humidity 5% to 90% (non-condensing)

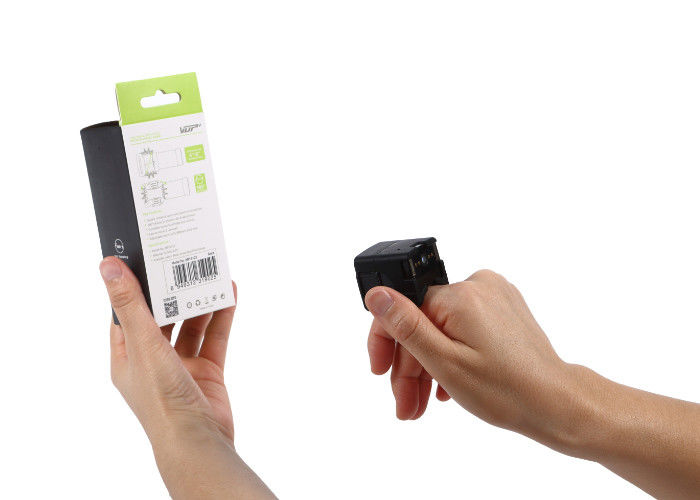

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 0

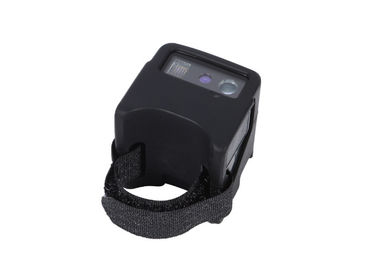

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 1

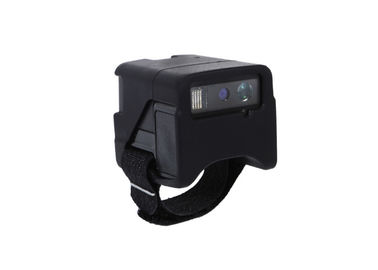

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 2

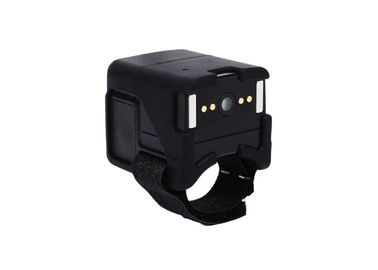

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 3

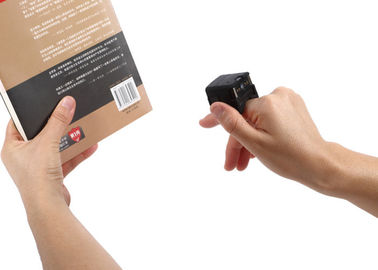

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 4

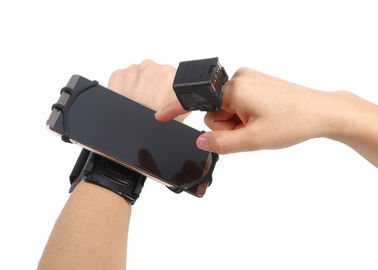

2D Outdoor Ring Mini Barcode Scanner For Warehouse And Distribution Application 5
