USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification
Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE, ROSH, FCC, IP65 Ect
Model Number: PTH2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiation
Packaging Details: one piece in one box
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs/ month
Contact Now
Detailed Product Description
Product: USB/RS232 Barcode Scanner Wireless And Wired Handheld Barcode Reader With CE Certification China Manufacturer CPU: 32bit
Camera: 640 X480 CMOS, 30fps Angel: 31°
ReReading Angel: 360, ±55° Working Voltage: USB5V
Working Current: 125mA Communication Port: USBHID-KBW
Cable Length: 2 Meters Dimension: 110mmL*71mmW*158mmH
High Light:

handheld qr code scanner

,

handheld scanner for warehouse

USB/RS232 Barcode Scanner Wireless and Wired Handheld Barcode Reader With CE certification China Manufacturer





Features:



♦ Plug & Play design, No need driver

♦ Appearance with ergonomic design

♦ Strong An-ti Shock Ability

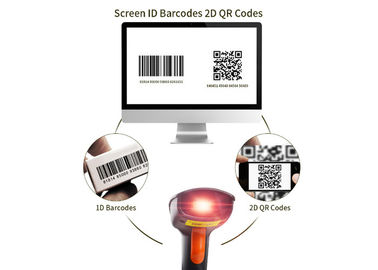

♦ 1D 2D barcode readable, Screen readable

♦ Application Scenarios: Supermarket/convenience store cashiers, customer service desks, ticketing windows, O2O application sites





USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 0





Product name 2D Scanner
Model name PTH2-U

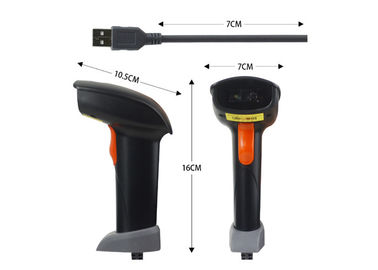

Dimensions



Length:67mm, Width: 90mm, Height:160mm

Weight 168grams
Electrical Power: DC5V Typical: 180mA DC5V
Working mode USB mode
Scan mode Trigger mode
Ambient illumination 0~100,000lux(natural light)







Scanner performance

Sensor Type: 640 (horizontal) × 480 (vertical) pixels

Light: white LED

red LED

Scanner Angle: ±65°,±65°,±360°(skew, pitch, Roll)

Field of view: Horizontal: 36° , Vertical: 28°

Contrast: ≥20%

Barcode Type 1D Codabar,Code39,code32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5,Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8, EAN/JAN-13,MS,GSI DataBar Omnidirectional,GSI DataBar Limited,GSI DataBar Expanded,China Post (Hong Kong 2 of 5),Korea Post.
2D CodeblockA,CodeblockF,PDF417,MicroPDF417, GS1 Composite Codes,TL39, QR Code, Data Matrix,MaxiCode,Aztec,HANXIN.

Decoding depth &

Max. Resolution

(1 mil = 0.0254 mm)

Code 39 30mm -90mm (5mil);
Code 39 40mm -195mm (13mil);
QR Code 30mm -170mm (15mil).
QR Code (Screen) 100mm -500mm (15mil).
Communication USB
OS IOS, Android, Windows, Mac
Certificate

CE, Rohs, FCC, EN60950, IEC60825, EMC.

Utility Model Patent No.: ZL201420211350.8

Laser safety IEC60825-1-2007, Class 1
Temperature

Operating: -20°C to +60°C ;

Storage: -30°C to +70°C

Humidity 5% to 95% (non-condensing)











USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 1

USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 2

USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 3

USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 4



USB/RS232 Barcode Scanner Handheld Barcode Reader With CE Certification 5





Core Competencies and Advantages


The company has established good working relationships with BMW, Wal-Mart, other domestic and foreign system integrators and independent software vendors. The company is in the process of establishing a dealer network throughout Europe and the Americas and is also in the process of establishing a comprehensive after sales service system to ensure rapid response and service to customers. In addition to all this, our company also has its own iOS, Android software, new product development capabilities along with a team of hardware engineers and associated infrastructure for testing and development. OEM/ODM flexible customization services in bulk or in small batches can be performed for customers from all walks of life. We offer 100% assistance to quickly turn around any customization requirements.




Company sercive:



1. The most favourable price and Right products.

2. Online technical support and Software upgrade

3. After-Sale Services: 2 years quality gurantee, within the first year, if there is any quality problem, we bear the shipping charges back and forth and offer repair services for free.
4. The most safety ways: Alibaba new service for payment(trade assurance) which is safe delivery!
5. 10 years experience techincal team serve you in any time

6. Small order, OEM/ODM Acceptable
