Place of Origin: | China |
Brand Name: | Effon |
Certification: | CE, FCC, Rosh, IP65 ect |
Model Number: | MS3391-L |
Minimum Order Quantity: | 1 pieces |
---|---|
Price: | Negotiation |
Packaging Details: | one pieces in one box |
Delivery Time: | 1 day |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 70000 pieces/ month |
Specification:: | MS3391-L Small 1D Laser Scanner | Mechanical:: | Length:57.8mm, Width: 42.3mm, Height:16.4mm |
---|---|---|---|
Weight:: | 40g | Electrical: | Power: DC5V Typical: 75mA DC5V |
CPU: | 32bit ARM CPU | Data Storage: | 100KB For Offline Mode: 6000 15 Bytes Barcodes(Other Flash Is Optional). |
Working Mode: | Bluetooth Mode, USB Mode, Offline Mode And RS232 Mode(optional) | Scan Mode: | Good-read Off, Momentary, Alternate, Continuous, Host |
Artificial Light Immunity: | 100,000 Lux | Scanner Rate: | 100 Times |
Scanner Angle: | ±50°,±65°,±35°(skew, Pitch, Roll) | Sensor Type: | Laser Diode 650nm |
High Light: | 1d barcode reader,1d wireless barcode scanner |

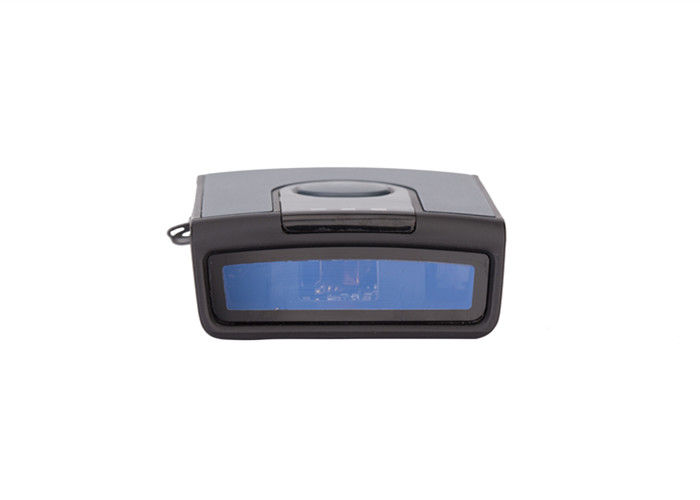

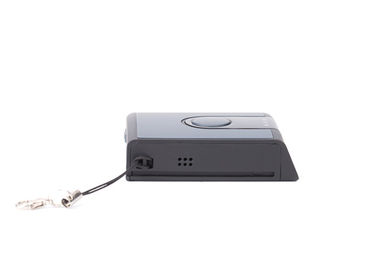

MS3391-L small 1D Laser Scanner

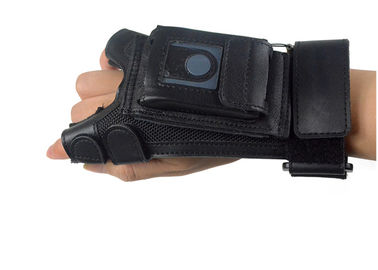

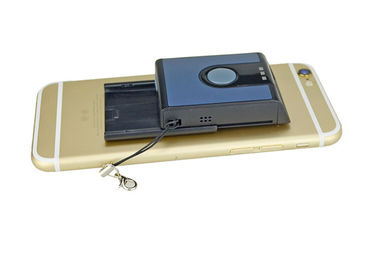

1d Barcode Scanner MS3391-L is a very lightweight, small, intelligent Bluetooth Barcode Scan Jacket. 1d Barcode Scanner ms3391 can read ultra high density and long distance barcode label. Because of high mobility,cross-platform design and flexible way of using, it is a perfect solution for mobile barcode scanning. With Unique cloud-scanning service, MS3391-L barcode scan jacket can be easily fixed on The smart mobile devices, 1d barcode scanner will make your smart mobile devices become a professional barcode collecting terminal .Through Bluetooth transmission communication protocol, you can scan barcode into your smart phone and share your data to your partner.
MS3391-L's superior performance, excellent reading ability. With Off-line storage capacity, makes your work more convenient and flexible.
Specification | MS3391-L small 1D Laser Scanner | ||||||||||||
Mechanical | Length:57.8mm, Width: 42.3mm, Height:16.4mm | ||||||||||||
Weight | 40g | ||||||||||||
Electrical | Power: DC5V Typical: 75mA DC5V | ||||||||||||
CPU | 32bit ARM CPU | ||||||||||||
Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). | ||||||||||||
Working mode | Bluetooth mode, USB mode, offline mode and RS232 mode(optional) | ||||||||||||
Scan mode | Good-read off, Momentary, Alternate, Continuous, Host | ||||||||||||
Artificial light immunity | 100,000 lux | ||||||||||||
Scanner performance |
Sensor Type: Laser Diode 650nm Scanner Rate: 100 times Scanner Angle: ±50°,±65°,±35°(skew, pitch, Roll) Contrast: >20% Decode Speed: 100 times per second |
||||||||||||
Battery power |
Internal Battery: Changeable 350mAh Li-ion Battery, Standby 5 days, working time after full charge with good decode as below:
Charge time: About 1.5hours |
||||||||||||
Barcode Type | UPC-A, UPC-E, EAN-13, EAN-8, ISBN/ISSN, Code 39, Code 39 full ASCII,Code 32, Trioptic Code 39, Interleaved 2 of 5, Industrial 2 of 5, Matrix 2 of 5,Codabar (NW7), Code 128, Code 93, Code 11(USD-8), MSI/Plessey,UK/Plessey, UCC/EAN 128, China Post, GS1 DataBar (formerly RSS) variants | ||||||||||||
Decoding depth & Max. resolution |
(1 mil = 0.0254 mm) 4 mil: 42- 75 mm 5 mil: 40-105 mm 10 mil: 10-250 mm 15 mil: 23-380 mm 20 mil: 35-490 mm 30 mil: 30-650 mm 55 mil: 75-900 mm |
||||||||||||
Communication | Class 3 Bluetooth HID, SPP with 20M distance, USB, RS232 cable(optional) | ||||||||||||
OS | IOS, Android, Windows, Mac | ||||||||||||
Certificate |
CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times). Utility Model Patent No.: ZL201420211350.8 |
||||||||||||
Laser safety | IEC60825-1-2007, Class 1 | ||||||||||||
Temperature |
Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) |
||||||||||||
Humidity | 5% to 90% (non-condensing) | ||||||||||||
Accessories |
1X MS3391-L 1X scanner jacket(fixed the scanner to mobile device 1X Lanyard 1X 3M double faced adhesive tape for Jacket 1X USB cable |
Packing & Warranty
1X MS3391-L Mini Barcode Scanner
1X scanner jacket(fixed the scanner to mobile device)
1X 3M double faced adhesive tape for Jacket
1X USB cable
1X Lanyard
Warranty
2 Years of quality warranty, Postech will undertake round shipping charges if any
faulty rates.
FAQ
Q1. What's your main products ?
- Laser Barcode Scanner - Image Barcode Scanner
- Thermal Receipt Printer - Dot -matrix Receipt Printer
- Bluetooth Printer - Cash Register Drawer
Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country
If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
