| Place of Origin: | China |
| Brand Name: | Effon |
| Certification: | CE,ROHS, FCC |
| Model Number: | GS02 |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | 1pcs into a retail box，OEM box is accepted （According to customer request） |
| Delivery Time: | sample in stock， bulk 1-7 days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal |
| Supply Ability: | 500000 pieces per month |
| Product Name: | Mini Wearable Wrist Mounted Wristband Barcode Scanner Armlet Bar Code Reader With Finger Trigger For Warehouse | Material: | TPU+PC For Barcode Reader， Genuine Leather For Glove |
|---|---|---|---|
| Advantage: | Handfree With Glove To Improve Working Efficiency | Application: | Logistics Industry , Inventory , Libary , Hospital Ect |
| Compatibility: | IOS , Android， Windows Smartphones Or PC | Battery Capacity: | 550mah， Last 8 Hours+ |
| Drop Test Level: | IP65 | Color: | Black |

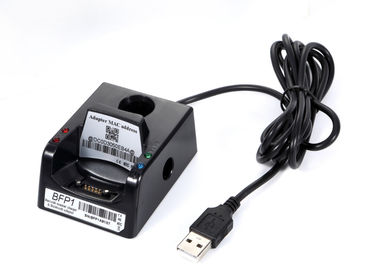

| Feature: | With Battary Charger/ Magnetic Cable | Particularity: | With Glove To Make Hand Free |
| High Light: | wearable bluetooth barcode scanner,warehouse barcode scanner |
||

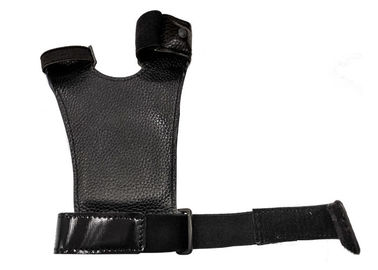

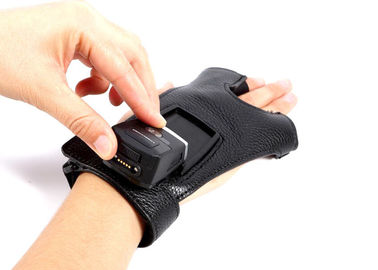

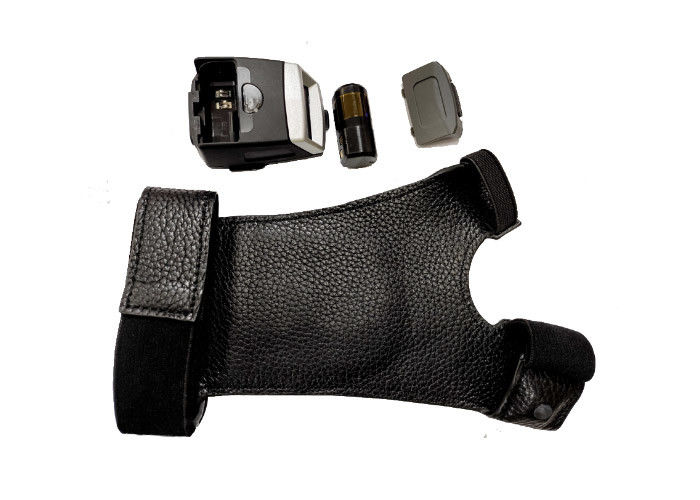

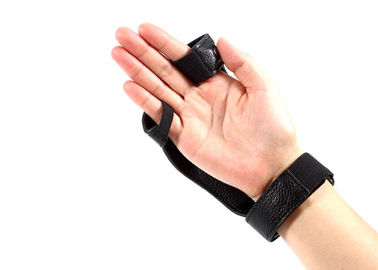

Mini wearable Wrist Mounted wristband Barcode scanner armlet bar code reader with finger trigger For Warehouse
When you pair Effon's wearable or handheld mobile data terminals with GS02 2D Bluetooth ring scanner, you give your workers the superior technology they need to take productivity to the next level, built to deliver reliable operation in the warehouse and manufacturing plant - inside, on the loading dock or in the freezer.The smart wearable data terminal is specially designed for picking and sorting application. It can enable your worker's free hands in the mutiple task. No longer waste time to pick and put the scanner down when moving the packages or meterials. it will save more time and physical strength, and can increase by 15% -30% productivity!
Product Parameter
Items | GS02 Wearable Ring 2D Scanner | ||
Demesion | Length:53.9mm, Width: 38mm, Height:23mm | ||
Ring scanner weight | 45.65g | ||
Electrical | Power: DC5V Typical: 300mA DC5V | ||
Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). | ||
Working mode | Bluetooth mode, USB mode, offline mode and RS232 mode(optional) | ||
Scanner performance | Sensor Type: | 640 (horizontal) × 400 (vertical) pixels | |
Decode Speed:: | 30 times per second | ||
ScannerAngle: | ±60°,±60°,±360°(skew, pitch, Roll) | ||
Contrast: | >20% | ||
Battery power | Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below: | ||
Continuous trigger scanning interval | Decoding number | Working time | |
1S | 10325 | 2.9hours | |
60065S | 4704 | 8.3 hours | |
10S | 3871 | 10.7hours | |
Charge time:About 2hours | |||
1D Barcode Type | UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes | ||
2D | PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal | ||
Max. Resolution (1 mil = 0.0254 mm) | Code 128 | 63mm -127mm (5mil); | |
PDF417 | 63mm -160mm (6.6mil); | ||
PDF417 | 45mm - 228mm (10mil); | ||
100%UPC | 50mm -317mm (13mil); | ||
Code 39 | 50mm - 495mm (20mil); | ||
Data Matrix | 38mm - 343mm (20mil); | ||
QR Code | 38mm -279mm (20mil). | ||
OS | IOS,Android, Windows, Mac | ||
Certificate | CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.5m drop test(500 times). Utility Model Patent No.: ZL201420211350.8 | ||
Temperature | Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F) | ||
Humidity | 5% to 90% (non-condensing) | ||
Effon's Total Wearable Solutions are the only dedicated family of enterprise wearable devices built on Android to deliver unrivaled scan performance and manageability. By combining the hands-free mobility of wearable technology with one-of-a kind features like tap offers the user operational flexibility needed to replace complexity with productivity.
