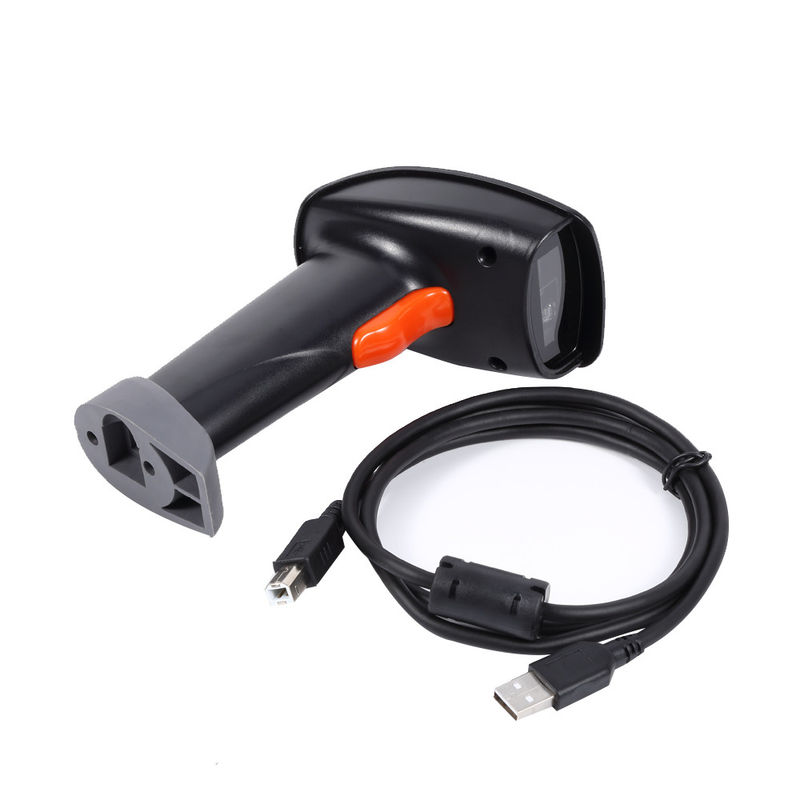

Rugged QR 1d 2d USB Infrared Handheld Barcode Scanner

Rugged QR 1d 2d USB Infrared Handheld Barcode Scanner

  • Rugged QR 1d 2d USB Infrared Handheld Barcode Scanner
Rugged QR 1d 2d USB Infrared Handheld Barcode Scanner
Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE, ROSH, FCC, IP65 Ect
Model Number: PTH2
Payment & Shipping Terms:
Minimum Order Quantity: 4000 pcs
Price: Negotiation
Packaging Details: one piece in one box
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs/ month
Contact Now
Detailed Product Description
Product: 2D Bluetooth Barcode Scanner CPU: 32bit
Camera: 640 X480 CMOS, 30fps Angel: 31°
ReReading Angel: 360, ±55° Working Voltage: USB5V
Working Current: 125mA Communication Port: USBHID-KBW
Cable Length: 1.8 Meters Dimension: 110mmL*71mmW*158mmH
High Light:

Rugged Handheld Barcode Scanner

,

Infrared Handheld Barcode Scanner

,

2d Handheld Qr Code Scanner

Best Rugged QR 1d 2d USB Infrared handheld barcode scanner



Product Features

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;

2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;

3. Support multiple communication methods such as USB, virtual serial port;

4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;

5. Compatible with Windows, Android and Linux systems.





Product name 2D Scanner
Model name PTH2-U
Dimensions



Length:67mm, Width: 90mm, Height:160mm

Weight 168grams
Electrical Power: DC5V Typical: 180mA DC5V
Working mode USB mode
Scan mode Trigger mode
Ambient illumination 0~100,000lux(natural light)







Scanner performance

Sensor Type: 640 (horizontal) × 480 (vertical) pixels

Light: white LED

red LED

Scanner Angle: ±65°,±65°,±360°(skew, pitch, Roll)

Field of view: Horizontal: 36° , Vertical: 28°

Contrast: ≥20%

Barcode Type 1D Codabar,Code39,code32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5,Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8, EAN/JAN-13,MS,GSI DataBar Omnidirectional,GSI DataBar Limited,GSI DataBar Expanded,China Post (Hong Kong 2 of 5),Korea Post.
2D CodeblockA,CodeblockF,PDF417,MicroPDF417, GS1 Composite Codes,TL39, QR Code, Data Matrix,MaxiCode,Aztec,HANXIN.

Decoding depth &

Max. Resolution

(1 mil = 0.0254 mm)

Code 39 30mm -90mm (5mil);
Code 39 40mm -195mm (13mil);
QR Code 30mm -170mm (15mil).
QR Code (Screen) 100mm -500mm (15mil).
Communication USB
OS IOS, Android, Windows, Mac
Certificate

CE, Rohs, FCC, EN60950, IEC60825, EMC.

Utility Model Patent No.: ZL201420211350.8

Laser safety IEC60825-1-2007, Class 1
Temperature

Operating: -20°C to +60°C ;

Storage: -30°C to +70°C

Humidity 5% to 95% (non-condensing)
