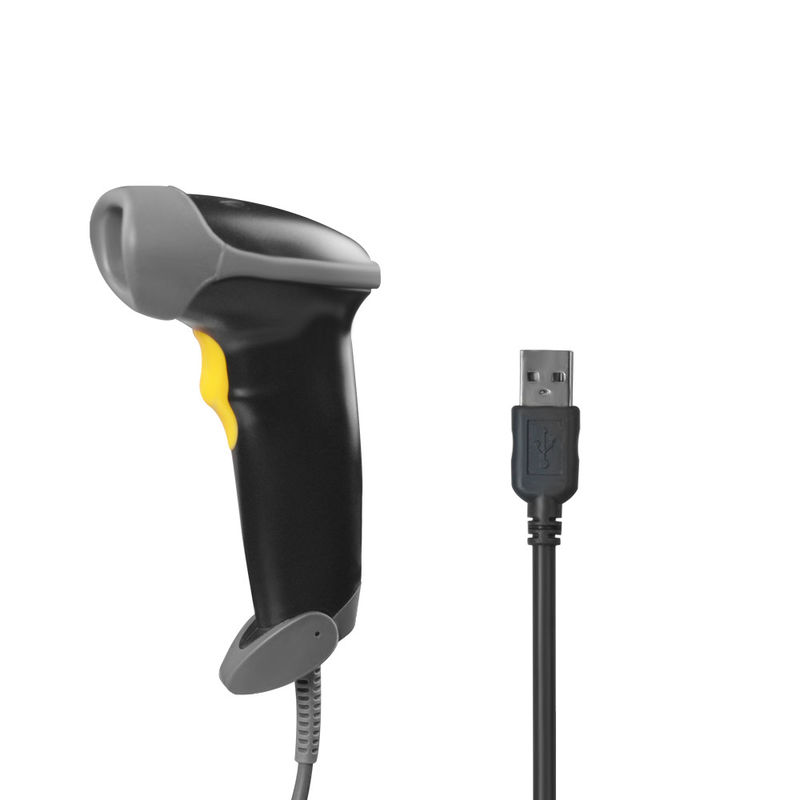

QR Matrix 640 X480 CMOS 2D Handheld Barcode Scanner

QR Matrix 640 X480 CMOS 2D Handheld Barcode Scanner

  • QR Matrix 640 X480 CMOS 2D Handheld Barcode Scanner
  • QR Matrix 640 X480 CMOS 2D Handheld Barcode Scanner
QR Matrix 640 X480 CMOS 2D Handheld Barcode Scanner
Product Details:
Place of Origin: China
Brand Name: postech
Certification: CE, ROSH, FCC, IP65 Ect
Model Number: HS07
Payment & Shipping Terms:
Minimum Order Quantity: 3000 pcs
Price: Negotiation
Packaging Details: one piece in one box
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs/ month
Contact Now
Detailed Product Description
Product: 2D Bluetooth Barcode Scanner CPU: 32bit
Camera: 640 X480 CMOS, 30fps Angel: 31°
ReReading Angel: 360, ±55° Working Voltage: USB5V
Working Current: 125mA Communication Port: USBHID-KBW
Cable Length: 1.8 Meters Dimension: 110mmL*71mmW*158mmH
High Light:

640 X480 CMOS Handheld Barcode Scanner

,

2D Handheld Barcode Scanner

,

QR Matrix Bluetooth Barcode Scanner



2D Handheld Barcode Scanner for QR Code Data Matrix PDF417 Code Bar code scanner HS07





Product Features

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;

2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;

3. Support multiple communication methods such as USB, virtual serial port;

4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;

5. Compatible with Windows, Android and Linux systems.



CPU

32bit
Camera 640 X480 CMOS, 30fps
Angel 31°
Reading Angel 360, ±55°
Reading depth of field EAN13: 40~200mm(13mil)
Code128: 45~250mm(20mil)
Code39: 45~95mm(5mil)
Working Voltage USB5V
Working Current 125mA
Communication Port USBHID-KBW
Cable length 1.8 meters
Dimension 110mmL*71mmW*158mmH
Working environment Working temperature: -20℃~60℃
Storage temperature: -40℃~70℃
Working humidity: 5%RH~95%RH
Reading barcodes

Open 1D barcodes(default): EAN13,EAN8,UPC-A,UPC-E0,UPC-E1,Code128,Code39Code93,CodaBar Closed 1D barcodes(default): Interleaved2of5,Industrial25,Matrix2of5,Code11,MSI Plessey,RSS-14,RSS



Open 2D barcodes: QRCode,PDF417,DataMatrix(ECC200)
