Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery

Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery

  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
  • Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery
Product Details:
Place of Origin: China
Brand Name: Posunitech
Certification: CE,ROHS, FCC, IP65
Model Number: FS02P
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pcs into a retail box,OEM box is accepted (According to customer request)
Delivery Time: 1-7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal
Supply Ability: 500000 pieces per month
Contact Now
Detailed Product Description
Material: TPU+PC Product Name: Portable Wearable Ring Barcode Scanner 1D Reader Mini Bluetooth Barcode Scanner 550mA Battery
Battery Capacity: 550mah Compatibility: IOS , Android, Windows Smartphones Or PC
Application: Logistics Industry , Store Inventory , Libary , Hospital Ect Superiority: IP65 Rugged Outer Case
Connector: Magnetic Connector Feature: With Battery Charger
High Light:

wearable barcode scanner

,

finger barcode scanner

Portable Wearable Ring Barcode Scanner 1D Reader Mini Bluetooth Barcode Scanner 550mA battery





FS02P wearable ring scanner enable operator to move package , products and materials, helping to increase more efficiency, It is very comfortable to wear it in whole working day, with high performance laser scan engine, even poor printed barcode can be read. The rugged rubber shell makes daily use reliable even in the roughest environments. FS02P wireless function allowing unparalleled freedom for movement in scanning, it can be avoid drop down and damage scanner when you wearing on the finger. Super Class2 Bluetooth technology and long range 2.4G antenna make you transfer data with 20M distance. You never need add more headcount to finish more work equip with FS02P wearable ring-style scanner. At the same time, we provide RS232 and USB version to connect PC and Electronic label shelf FS02P can connect with iOS and android smart phone easily. Special design Bluetooth protocol, you can scan barcode into iPad and iphone directly without install any software, double push trigger button, you can display and hide soft keyboard in iOS.





Product name Wearable Ring Scanner
Model name FS02P









Dimensions



Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery 0

Length:55.0mm, Width: 39.2mm, Height:51.2mm

Weight 65grams
Electrical Power: DC5V Typical: 300mA DC5V
CPU 32bit ARM CPU
Data storage 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode Bluetooth mode, offline mode and RS232 mode(optional)







Scanner performance

Sensor Type: Laser Diode 650nm

Scanner Angle: ±40°,±45°,±35°(skew, pitch, Roll)

Scan Rate: 104(±12)scans/sec(bidirectional)

Contrast: ≥20%

Decode Speed:104 scans per second











Battery power



Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:



Continuous trigger

scanning interval

Decoding number Working time
1S 20000 5.6hours
5S 7100 9.8hours
10S 4600 12.8hours

















Charge time: About 2 hours

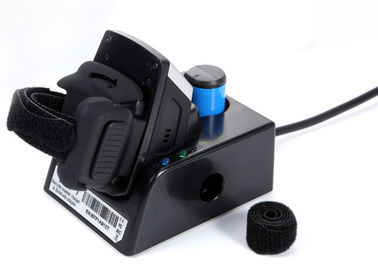

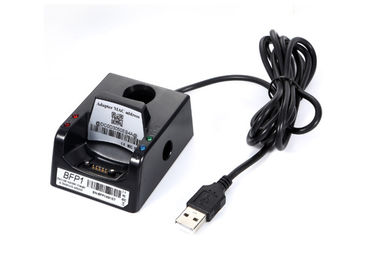

FS02P is 2d industrial ring scanner with IP grade . Its battery is 550mAh battery with bluetooth charging cradle,after full charge, it can work continuously for 10.4 hours . Rugged case makes it more suitable for warehouse picking / sorting out

FS02P USB interface bluetooth barcode scanner compatible with android is a powerful new generation barcode scanner with small size and charming appearance. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store.


You never need setting an item down to check paper work order or picking up handheld scanner. Operator even no need to put heavy package to the desktop for scan, it will save more time and physical strength. Compare with common wired handheld scanner, FS02P can increase 15%-30% productivity!;



Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery 1









Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery 2



Portable Ring Barcode Scanner 1D Mini Bluetooth Barcode Reader 550mA Battery 3
