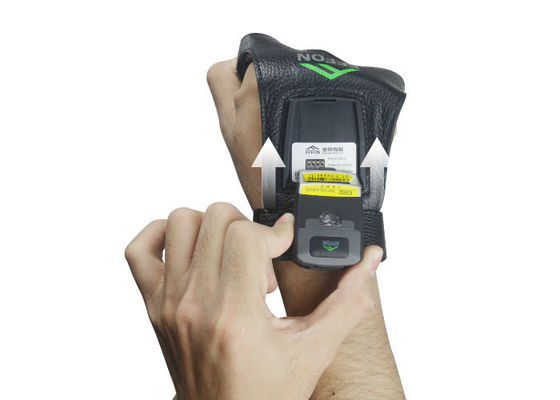

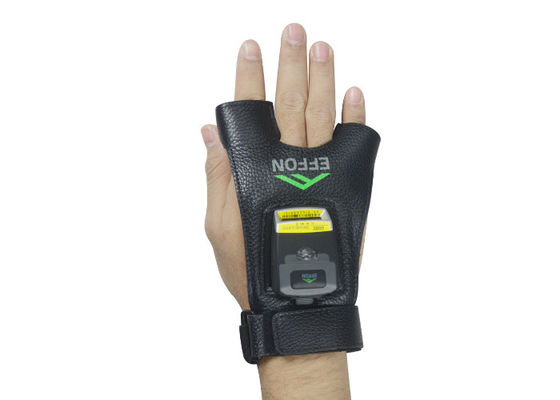

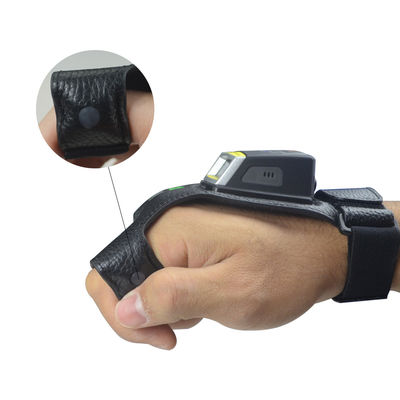

High Speed Wireless Wearable 2D Glove Barcode Reader
High Speed Scanning Warehouse Wireless Bluetooth Finger Wearable 2D Ring Barcode Reader
GS02 Bluetooth 2D Glove Barcode Scanner, It's specially customized for summer used. no matter how hot your warehouse is, breathable materials will make you feel extremely comfortable.
With a user-focused design, the glove solutions are built to increase efficiency across a wide range of industrial environments including manufacturing and logistics. Give your operators an edge by equipping them with the wearable scanning solution.
When put the 1D bluetooth laser ring scanner in use, best-in- class scanning performance gives your workers the superior blend of technology, achieving a new level of productivity in package handling and warehouse applications.
Such Wearable smart data termial enables your operator to free hand and improve operational efficiency in your warehouse, distribution center, and retail store. You never need setting an item down to check paper work order or picking up a handheld scanner. Operator even no need to put the heavy package to the desktop for the scan, it will save more time and physical strength. Compare with a commonly wired handheld scanner, wearable Ring barcode scanner can increase 15% -30% productivity!
Product Parameter
|
Items
|

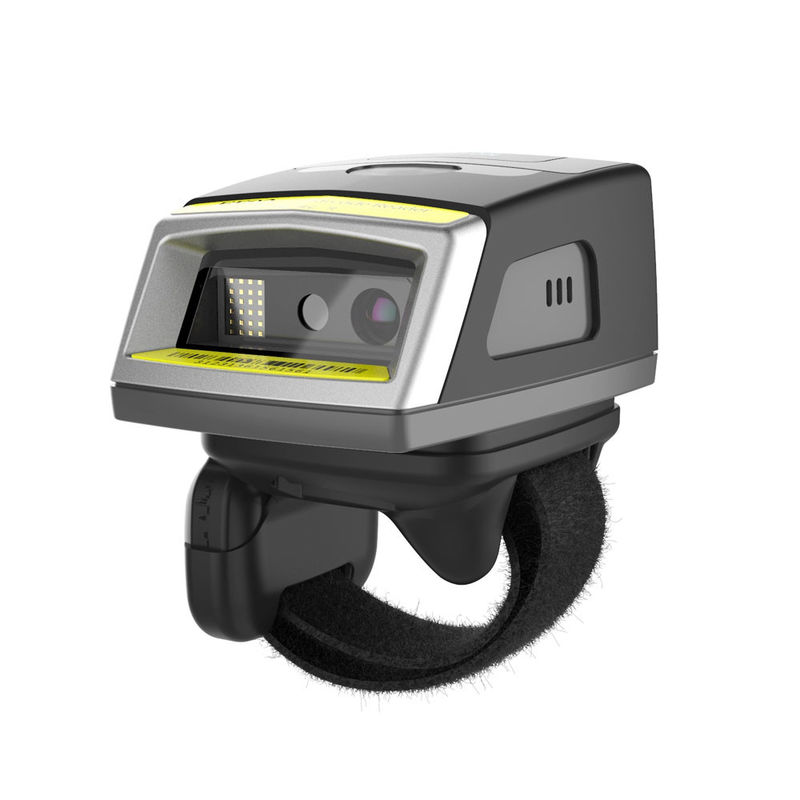

GS02 Wearable Ring 2D Scanner
|
||
|
Demesion
|
Length:53.9mm, Width: 38mm, Height:23mm
|
||
|
Ring scanner weight
|
45.65g
|
||
|
Electrical
|
Power: DC5V Typical: 300mA DC5V
|
||
|
Data storage
|
100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
|
||
|
Working mode
|
Bluetooth mode, USB mode, offline mode and RS232 mode(optional)
|
||
|
Scanner performance
|
Sensor Type:
|
640 (horizontal) × 400 (vertical) pixels
|
|
|
Decode Speed::
|
30 times per second
|
||
|
ScannerAngle:
|
±60°,±60°,±360°(skew, pitch, Roll)
|
||
|
Contrast:
|
>20%
|
||
|
Battery power
|
Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working
time after full charge with good decode as below: |
||
|
Continuous trigger
scanning interval |
Decoding number
|
Working time
|
|
|
1S
|
10325
|
2.9hours
|
|
|
60065S
|
4704
|
8.3 hours
|
|
|
10S
|
3871
|
10.7hours
|
|
|
Charge time:About 2hours
|
|||
|
1D Barcode Type
|
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,
Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes |
||
|
2D
|
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro
QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal |
||
|
Max. Resolution
(1 mil = 0.0254 mm) |
Code 128
|
63mm -127mm (5mil);
|
|
|
PDF417
|
63mm -160mm (6.6mil);
|
||
|
PDF417
|
45mm - 228mm (10mil);
|
||
|
100%UPC
|
50mm -317mm (13mil);
|
||
|
Code 39
|
50mm - 495mm (20mil);
|
||
|
Data Matrix
|
38mm - 343mm (20mil);
|
||
|
QR Code
|
38mm -279mm (20mil).
|
||
|
OS
|
IOS,Android, Windows, Mac
|
||
|
Certificate
|
CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.5m drop test(500 times).
Utility Model Patent No.: ZL201420211350.8 |
||
|
Temperature
|
Operating: -20°C to 60°C (-4°F to 140°F);
Storage: -40°C to 70°C (-40°F to 158°F) |
||
|
Humidity
|
5% to 90% (non-condensing)
|
||
