Place of Origin: | China |
Brand Name: | Effon |
Certification: | CE,ROHS, FCC |
Model Number: | MS760 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiation |
Packaging Details: | 1pcs into a retail box |
Delivery Time: | 1-7 days |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal |
Supply Ability: | 500000pieces per month |
Type: | Effon 2D Barcode Scanner Module Embedded Barcode Scanner For Metro & Gate | Scan Element Type: | CMOS |
---|---|---|---|
Application Scenario: | Bar Code Payment, Group Purchase Verification, Customer Service Desk And Other Mobile Phone Barcode Verification Scenarios | Interface: | USB, RS232 |
Resolution: | ≥3.9mil | Decode Capacity: | Omni Directional Reading For All 1D/2D Barcodes |
Shock Specifications: | Designed To Withstand 1.5m(5’) Drops | Prompt: | Buzzer Indicator |
Certificate: | CE FCC ROHS ISO9001 | ||
High Light: | desktop barcode scanner,embedded barcode scanner |

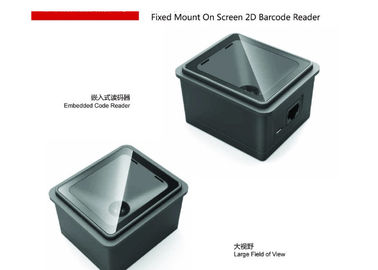

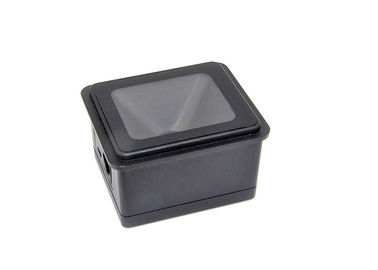

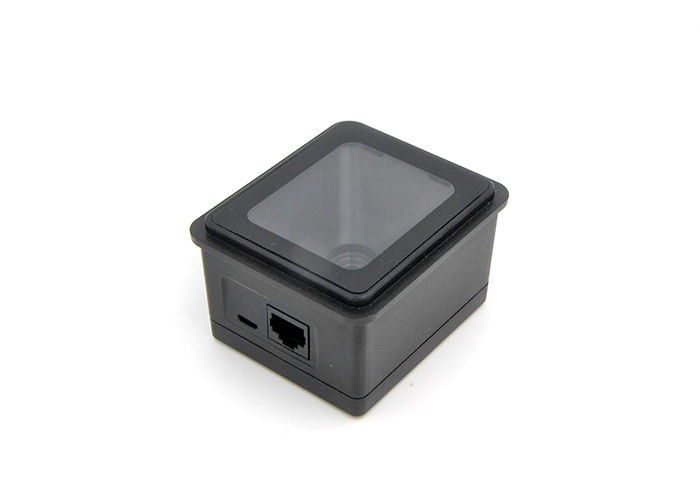

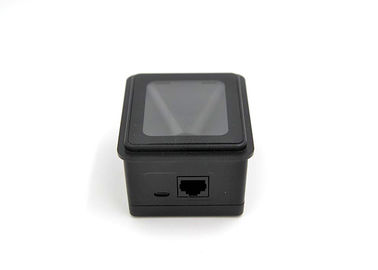

Effon 2D barcode scanner module embedded barcode scanner for Metro & Gate
Advantage:
Object Auto Sense
Build in RS232 and USB Interface
Omni Directional Reading for all 1D/2D Barcodes.
Can Read Barcode on Screen Even Without Backlight from Cellphone.
Multiple Language Barcode Message Transfer.
Application scenarios: City buses, corporate buses, long-distance buses, subway station gates, railway station gates, parking lots, sceneries
Zone gate, TMV cabinet, e-commerce self-lifting cabinet, smart home, smart home, storage cabinet, ATM self-service cabinet, self-service check, Inquiry terminal, queuing equipment, certificate manufacturers
Physical Characteristics | |
Dimensions: | 77.5mm x 66mm x 45mm |
Weight: | 75g |
Voltage: | 3.3-5V(DC) |
Current: | 200mA |
Performance Characteristics | |
Image(Pixels): | 640 pixels (H) x 480 pixels (V) |
Light Source: | Illumination:6500K LED |
Field of View: | 72°(H)x64°(V) |
Roll/Pitch/Yaw: | 360° ,±65°,±60° |
Motion Tolerances: | >2m/s |
Print Contrast: | 20%minimum reflective difference |
Interfaces Supported: | USB,RS232 |
Symbology Decode Capability | |
1-D: | UPC, EAN, Code 128, Code 39, Code 93, Code 11, Matrix 2 of 5,Codabar Interleaved 2 of 5,Mis Plessey, GSI DataBar, China Postal,Korean Postal, etc. |
2-D | PDF417,MicroPDF417,Data Matrix,Maxicode,QR Code,MicroQR,Aztec,Hanxin,etc. |
Minimum Resolution | ≥3.9mil |
Decode Ranges | |
6.88 mil(PDF417) | 0mm-50mm |
10 mil(Data Matrix) | 0mm-50mm |
13 mil(UPCA) | 5mm-110mm |
20 mil(QR) | 0mm-100mm |
User Environment | |
Operating Temperature: | -30℃ to 70℃ |
Storage Temperature: | -40℃ to 150℃ |
Humidity: | 0% to 95%relative humidity,non-condensing |
Shock Specifications: |
Designed to withstand 1.5m(5’)drops |
Ambient Light Immunity: | 100.000Lux. |
