Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed
Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed
Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed
Product Details:
Place of Origin: China
Brand Name: Posunitech
Certification: CE, FCC, RoHS
Model Number: MS430
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiation
Packaging Details: 1pc in a retail box, 50pcs into a Carton
Delivery Time: 1~7 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability: 50000 pieces per month
Contact Now
Detailed Product Description
Type: Passport Reader Scanner Interface: USB, RS232
Scan Element Type: CMOS Scan Angle: 360 Degree
Scan Speed: 280 Time/sec Scan Type: 1D 2D, OCR MRZ Code
Dimensions: 41.5x49.5x24.3mm(LxHxD) Weight: 75g
Color: Black Warranty: 2 Years
High Light:

id and passport scanner

,

passport barcode scanner

MS430 OCR MRZ Passport Reader Scanner for Passport reading, Tax Back Solution

MS430 2d fixed mount scanner, Ocr Scanner MRZ passport reader is with fixed mount and compact design for OEM applications, this high performance fixed mount barcode scanner can easily be integrated into various solutions such as kiosks, ticketing machines, (reverse) vending machines, and passport reading projects.

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 0



1. Main parameters

Items
MS430 Passport Barcode Reader Scanner OCR MRZ Code Reader
Dimensions
41.5×49.5×24.3mm(L×H×D)
Weight
75g
Interface
USB and RS232
Voltage Current
5VDC, 400mA (Operating)
1280 * 800 CMOS
Field of View
Horizontal 51°, Vertical 32°
Roll / Pitch / Yaw
Roll: 360°, Pitch: ±55°, Skew:±55°
Scan Mode
Sense mode, Continuous mode, Level mode, Pulse mode
Notification
Beep, LED indicator
1D barcodes
EAN-13, EAN-8, UPC-A, UPC-E, Code, 128, Code 39, Codabar, UCC/EAN, 128, RSS, ITF, ITF-14, ITF6, Standard25, Matrix 25, COOP 25, Industrial25, Plessey, MSI Plessey, Code 11,Code 93, Code 49, Code 16K, etc
2D barcodes
PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, MRZ, OCR etc.

   Decode Ranges
   EAN-13    55-360mm (13mil)
   Code 39    70-180mm (5mil)
   PDF417    55-160mm (6.7mil)
   Data Matrix    50-170mm (10mil)
Certificate
CE, FCC, Rohs, FCC, 1.5m drop test(500 times), IP54


2. Product details

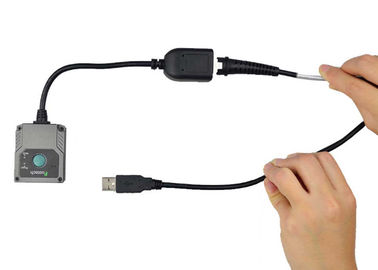

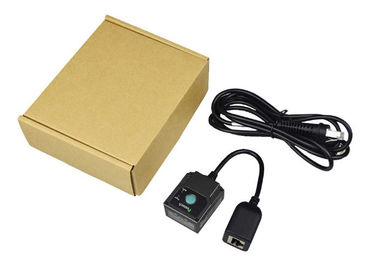

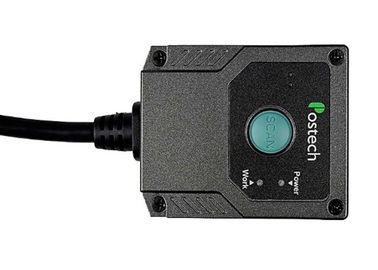

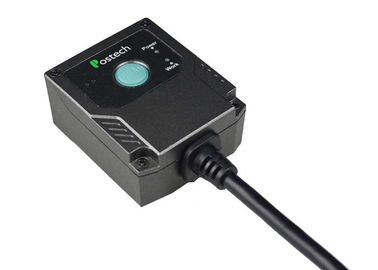

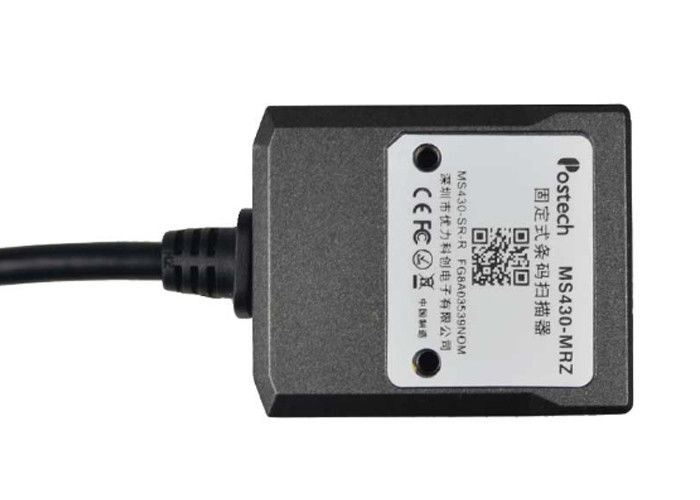

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 1

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 2

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 3

3. Application

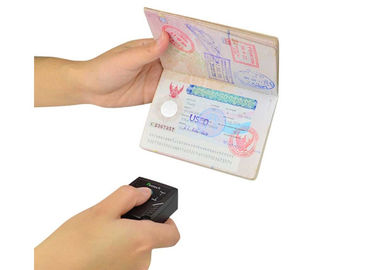

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 4

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 5

Compact Design Ocr Mrz Passport Reader Scanner With High Scanning Speed 6
