Name: Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner
Brand: Effon
SKU: EF02

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner

Product Details:

Place of Origin:	China
Brand Name:	Effon
Certification:	CE,ROHS, FCC, IP65
Model Number:	EF02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	1pcs into a retail box，OEM box is accepted （According to customer request）
Delivery Time:	1-5days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal
Supply Ability:	500000 pieces per month

Contact Now

Detailed Product Description

Battery Capacity:	550mah	Compatibility:	IOS , Android， Windows Smartphones Or PC
Application:	Logistics Industry , Store Inventory , Libary , Hospital Ect	Superiority:	IP65 Rugged Outer Case
Feature:	With Battery Charger	Product Name:	Cmos Qr Pocket 2d Mini Wireless Barcode Reader Blue Tooth Ring Scanner EF02
High Light:	550mah Wireless Ring Scanner , ROHS wireless ring scanner , ROHS Bluetooth ring scanner

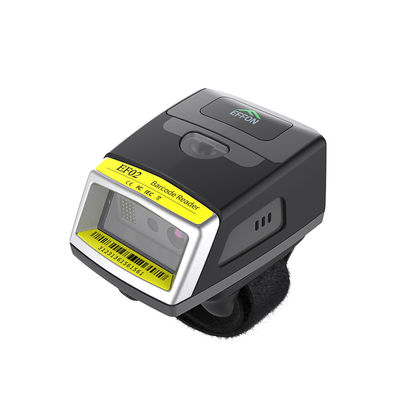

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner

Cmos Qr Pocket 2d Mini Wireless Barcode Reader Blue Tooth Ring Scanner EF02

EF02 is 2d industrial ring scanner with IP grade . Its battery is 550mAh battery with bluetooth charging cradle,after full charge, it can work continuously for 10.4 hours . Rugged case makes it more suitable for warehouse picking / sorting out

EF02 USB interface bluetooth barcode scanner compatible with android is a powerful new generation barcode scanner with small size and charming appearance. It is designed for picking and sorting application, enable your operator to free hand and improve operational efficiency in your warehouse, distribution center and retail store.

Product Features:
1. Works with bluetooth enabled PDAs,smartphones, tablet, notebooks and desktop computer:
Windows mobile 7/8/10 , XP ,vista
Apple ipod touch, iphone, ipad and Mac OS
Android OS, blackberry OS, QNS
2. Bluetooth longrangewireless connection ;
3. Easy to use with automatic reconnection ;
4. LED and beeps indicate good scan,connection and power status ;
5. Easy access to apple IOS on -screen keyboard ;
6. Small easy to bring ,auto sleep ;

7. 1D CCD scanner engine(can scan the barcode on paper or on screen)

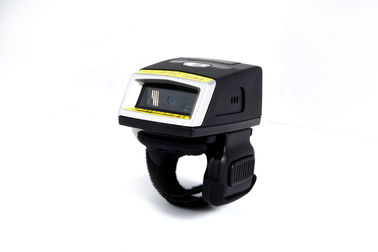

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner 0

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner 1

Product name

Wearable Ring 2D Scanner

Model name

EF02

Dimensions

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner 2

Length:55.0mm, Width: 39.2mm, Height:51.2mm

Weight

65grams

Electrical

Power: DC5V Typical: 300mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).

Working mode

Bluetooth mode, offline mode and RS232 mode(optional)

Scanner performance

Sensor Type: Laser Diode 650nm

Scanner Angle: ±40°,±45°,±35°(skew, pitch, Roll)

Scan Rate: 104(±12)scans/sec(bidirectional)

Contrast: ≥20%

Decode Speed:104 scans per second

Battery power

Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:

Continuous trigger scanning interval	Decoding number	Working time
1S	20000	5.6hours
5S	7100	9.8hours
10S	4600	12.8hours

Charge time: About 2 hours

Cmos Qr Pocket Bluetooth 550mah Wireless Ring Scanner 3
