Name: CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity
Brand: Posunitech
SKU: FS02P

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity

Product Details:

Place of Origin:	China
Brand Name:	Posunitech
Certification:	CE,ROHS, FCC, IP65
Model Number:	FS02P

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	1pcs into a retail box，OEM box is accepted （According to customer request）
Delivery Time:	1-7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal
Supply Ability:	500000 pieces per month

Contact Now

Detailed Product Description

Material:	TPU+PC	Product Name:	FS02P Factory Direct Supply CMOS 1D Barcode 2D Data Matrix PDF417 POS QR Code Scanner With High Quality
Battery Capacity:	550mah	Compatibility:	IOS , Android， Windows Smartphones Or PC
Application:	Logistics Industry , Store Inventory , Libary , Hospital Ect	Superiority:	IP65 Rugged Outer Case
Connector:	Magnetic Connector	Feature:	With Battery Charger
High Light:	wearable barcode scanner , ring barcode reader

FS02P Factory Direct Supply CMOS 1D Barcode 2D Data Matrix PDF417 POS QR Code Scanner with high quality

FS02P is 2d industrial ring scanner with IP grade . Its battery is 550mAh battery with bluetooth charging cradle,after full charge, it can work continuously for 10.4 hours . Rugged case makes it more suitable for warehouse picking / sorting out

FS02P is 2d industrial ring scanner with IP grade . Its battery is 550mAh battery with bluetooth charging cradle,
after full charge, it can work continuously for 10.4 hours . Rugged case makes it more suitable for warehouse
picking / sorting out .

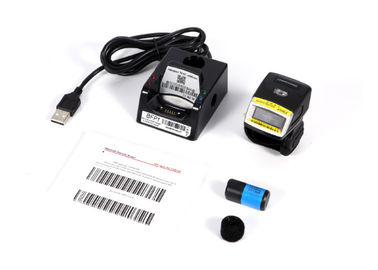

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 1

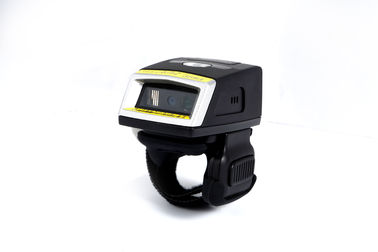

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 2

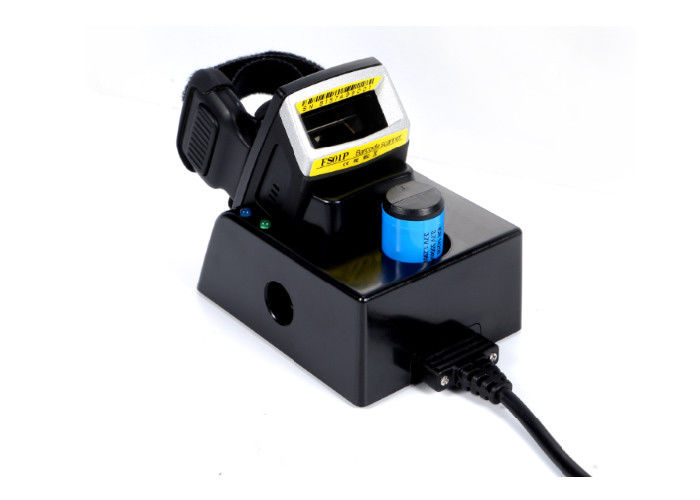

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 3

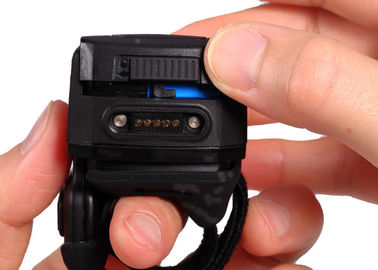

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 4

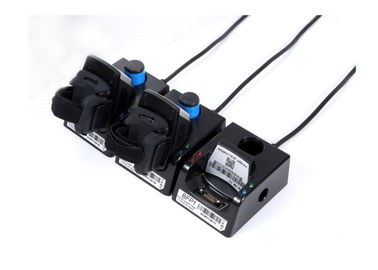

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 5

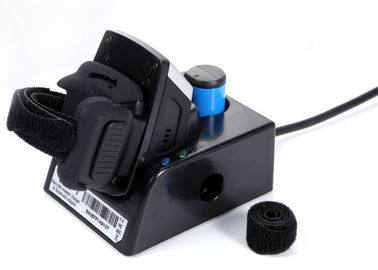

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 6

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 7

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 8

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 9

CMOS 2D Industrial Ring Barcode Scanner Wearable High Battery Capacity 10

Product name

Wearable Ring 2D Scanner

Model name

FS02P

Dimensions

Length:55.0mm, Width: 39.2mm, Height:51.2mm

Weight

65grams

Electrical

Power: DC5V Typical: 300mA DC5V

CPU

32bit ARM CPU

Data storage

100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).

Working mode

Bluetooth mode, offline mode and RS232 mode(optional)

Scan mode

Manual mode, Continuous, Host, Sense mode

Ambient illumination

0～107,639 lux

Scanner performance

Sensor Type: 640 (horizontal) × 400 (vertical) pixels Light: 610nm LED
660nm red LED
Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28°
Contrast: ≥20%

Battery power

Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:

Continuous trigger scanning interval	Decoding number	Working time
1S	10325	2.9hours
5S	6006	8.3hours
10S	3871	10.7hours

Charge time: About 2 hours

Barcode Type

UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes

PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal

Decoding depth &

Code 39

51mm -162mm (5mil);

Code 128

63mm -127mm (5mil);

PDF417

63mm -160mm (6.6mil);

PDF417

45mm - 228mm (10mil);

100%UPC

50mm -317mm (13mil);

Code 39

50mm - 495mm (20mil);

Data Matrix

38mm - 343mm (20mil);

QR Code

38mm -279mm (20mil).

Communication

Class 3 Bluetooth HID, SPP, BLE(optional) with 20M distance, RS232 cable(optional)

IOS, Android, Windows, Mac

Certificate

CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times). Utility Model Patent No.: ZL201420211350.8

Laser safety

IEC60825-1-2007, Class 1

Temperature

Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F)

Humidity

5% to 90% (non-condensing)

Accessories

1× FS02P

1× 3.7V 15320 Li-ion battery æœªæ ‡é¢˜-1

1× Velcro

1× Silicone Case QQå›¾ç‰‡20191230144527

1× Charger cabale(optional)

Barcode scanner charger & Bluetooth adapter
IMGL9567

Product name

Barcode scanner charger & Bluetooth adapter(optional)

Model name

BFP1

Dimensions

72.0mm L × 56.0mm W × 40.3mm H

Weight

50grams

Power

DC:5V/500mA

Charge current

250mA

Interface

1×Type-C(For charge or data transmission):5V DC

2×DC jack(optional): 5V DC

Characteristic

1. It can charge both batteries and machines at the same time.

2. The charger can be multiple connected(optional). (In order to ensure charging efficiency, it is recommended that no more than 5 chargers be connected.)

Adapter Working mode

HID keyboard,Virtual Serial Port , RS-232(o
