Product name
|

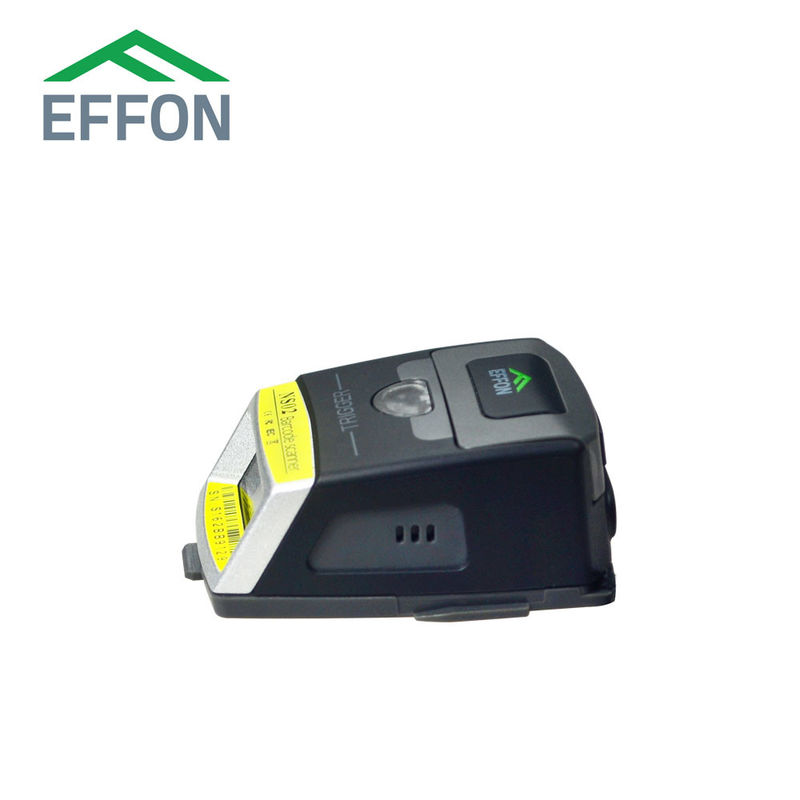

Wearable Ring 2D Scanner
|
|
Model name
|
NS02
|
|
Dimensions
|
57.0×42.0×24.4 mm (L×W×H)
|
|
Weight
|
45grams(Without Sling)
|
|
Material
|
Polycarbonate housing with overmold( PC+TPU)
|
|
Electrical
|
Power: DC5V Typical: 300mA DC5V
|
|
CPU
|
32bit ARM CPU
|
|
Data storage
|
100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
|
|
Working mode
|
Bluetooth mode, offline mode and RS232 mode(optional)
|
|
Communication
|
Class 3 Bluetooth HID, SPP, BLE(optional) with 30M distance, Support NFC pairing, RS232 cable(optional)
|
|
OS
|
IOS, Android, Windows, Mac
|
|
Battery power
|
Capacity
|
550mAh
|
|
Standby
|
> 30 days
|
|
Charge time
|
2 hous
|
|
Duration
|
Continuous trigger
scanning interval
|
Decoding number
|
Working time
|
|
1S
|
16800
|
4.7hours
|
|
5S
|
6400
|
8.9hours
|
|
10S
|
3700
|
10.3hours
|
|
Scan Enging
|
■SE2707
|
□SE4710
|
□SE965
|
□EM1350
|
|
Scan mode
|
Manual mode, Continuous, Host, Sense mode
|
|
Ambient illumination
|
0～107,639 lux
|
|
Scanner performance
|
Sensor Type
|
640 (horizontal) × 400 (vertical) pixels
|
|
Light
|
610nm LED(Aiming LED), 660nm red LED(Ilumination)
|
|
Scanner Angle
|
±60°,±60°,±360°(skew, pitch, Roll)
|
|
Field of view
|
Horizontal: 42° , Vertical: 28°
|
|
Contrast
|
≥20%
|
|
Barcode Type
|
1D
|
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check
ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check
Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet
Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar
Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128
Emulation Mode for UCC/EAN Composite Codes
|
|
2D
|
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK
Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
|
|
Decoding depth & Max. Resolution
(1 mil = 0.0254 mm)
|
Code 39
|
51mm -162mm (5mil);
|
|
Code 128
|
63mm -127mm (5mil);
|
|
PDF417
|
63mm -160mm (6.6mil);
|
|
PDF417
|
45mm - 228mm (10mil);
|
|
100%UPC
|
50mm -317mm (13mil);
|
|
Code 39
|
50mm - 495mm (20mil);
|
|
Data Matrix
|
38mm - 343mm (20mil);
|
|
QR Code
|
38mm -279mm (20mil).
|
|
Certificate
|
CE, Rohs, FCC, IP65, IEC, EC/EN60950, EC/EN62471
|
|
Environmental parameters
|
Drop resistance
|
Pass 200 times 1.5m drop test
|
|
temperature
|
Operating : -5°C to 50°C
|
|
Storage: -20°C to 60°C
|
|
Humidity
|
5% to 90% (non-condensing)
|
|
|
