Place of Origin: | China |
Brand Name: | postech |
Certification: | CE, FCC, ROSH |
Model Number: | HS02 |
Minimum Order Quantity: | 1 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | one pieces in one box |
Delivery Time: | 1 day |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 70000pc/month |
Specification: | HS02 Handheld 2D Bluetooth Scanner | Mechanical: | Length: 168mm, Width: 68mm, Height: 80mm |
---|---|---|---|
Weight: | 150g | Electrical: | Power: DC5V 260mA |
CPU: | 32bit ARM CPU | Data Storage: | 100KB For Offline Mode |
Working Mode: | Bluetooth Mode, USB Mode, Offline Mode(optional) | Sensor Type: | CMOS |
High Light: | handheld barcode reader,handheld qr code scanner |

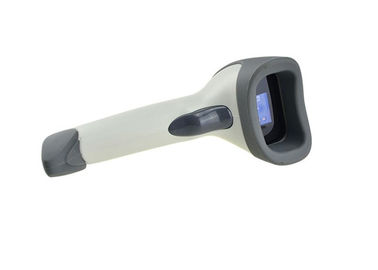

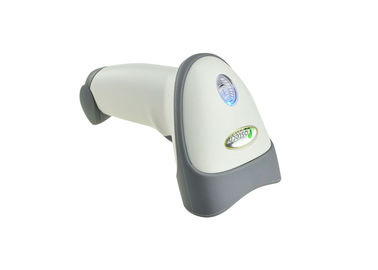

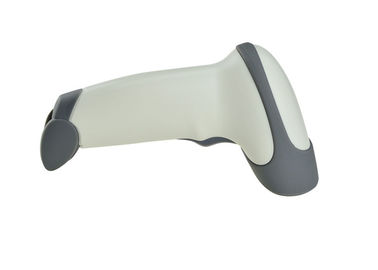

HS02 Handheld scanner designed independently by Postech, aimed at offering convenience to supermarket, clothing store and store cash register. Which's simple to use and support wireless bluetooth and serial port connection as two optional modes. Its built-in high-speed qr code barcode scanning engine can scan 1d&2d barcodes
Its built-in high-speed qr code barcode scanning engine can scan 1d&2d barcodes.
Built-in 1000mah lithium battery in full power whose stand-by time can last for15 days and not only work continuosly for to 10 hours.
Not connecting with any devices, it also can store 6000 barcodes of 15 bytes
Built-in 1000mah lithium battery in full power whose stand-by time can last for15 days and not only work continuosly for to 10 hours.
Not connecting with any devices, it also can store 6000 barcodes of 15 bytes
Not connecting with any devices, it also can store 6000 barcodes of 15 bytes
Basic Characteristics | |||
Dimensions | 168mm×80mm×68mm(LxHxD) | Weight | 150g |
Voltage and Current | 5 VDC +/-10% @ 400 mA | OS | IOS, Android, Windows, Mac |
Data storage | 100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional). | ||
Communication | Class 3 Bluetooth Human Interface Device, SPP with 20M distance, USB, USB virtual serial port(optional), RS232(Optional) | ||
Working mode | Bluetooth mode, USB mode, offline mode(optional) | ||
Scan mode | Good-read off, Momentary, Alternate, Continuous, Host | ||
Battery power | Internal Battery: Changeable 1000mAh Li-ion Battery, Standby 15 days, working time after full charge with good decode as 12hours. Charge time: About 3hours |
Performance Characteristics | |||
Sensor Type | CMOS | Scanner Rate | 100 times |
CPU | 32bit ARM CPU | Image (Pixels) | 640 pixels (H)x 480 pixels (V) |
Light Source | Aiming: 617 nm LED; illumination: 6500K LED | ||
Field of View | 40° (H) x 26° (V) | Roll / Pitch / Yaw: | 360°, ±65°, ±60° |
Print Contrast | 25% minimum reflective difference |
Symbology Decode Capability | |||
1D | UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of5, ISBT Concat | ||
2D | PDF417, Composite Codes,Data Matrix, Maxicode, QR | ||
Motion Tolerances | up to 25 in. (63.5 cm) per second | ||
Interfaces Supported | USB | ||
Light Source | Aiming: 617 nm LED; illumination: 6500K LED |
User Environment | |||
Operating Temperature | 32° to 122° F / 0° to 50° C | Storage Temperature | -40° to 158° F / -40° to 70° C |
Humidity | 5% to 95%, non-condensing | Minimum resolution | ≥5mil |
Drop/Shock Specifications | 1.5M 200times drop test | ||
Ambient Light Immunity | Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux |
Other | |||
Certificate | CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.2m drop test(500 times). | ||
Laser safety | IEC60825-1-2007, Class 1 | ||

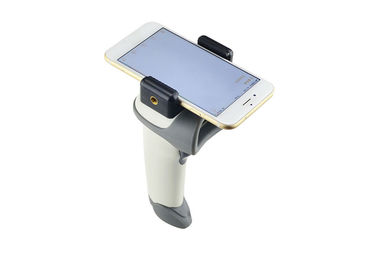

Accessories | USB cable, Bracket(optional),Bluetooth adapter(optional), mobile phone's holder(optional) |
Packing
1. HS02 Handheld Barcode Scanner
2. USB cable, Bracket(optional)
3. Bluetooth adapter(optional)
4. mobile phone's holder(optional)
5. Hands free holder(optional)
6. User's manual
1. 2 years quality guarantee (all items will be checked 200% before shipping)
2. Professional R&D department to provide the technical support Professional R&D department to provide the technical support
3. OEM is accepted according to customer's requirement
4. Excellent service of the express which can make you receive the goods easily
5. After-sale service: We will undertake shipping charges if items caused by quality problem
Q1. What's your main products ?
- Laser Barcode Scanner - Image Barcode Scanner - Thermal Receipt Printer
- Dot -matrix Receipt Printer - Bluetooth Printer - Cash Register Drawer
Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample? And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
