2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader

2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader

2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader
2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader
2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader
Product Details:
Place of Origin: China
Brand Name: Effon
Certification: CE, ROSH, FCC, IP65 Ect
Model Number: NS02
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: Negotiation
Packaging Details: one piece in one box
Delivery Time: 1 day
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 70000pcs/ month
Contact Now
Detailed Product Description
Product: 2D Bluetooth Barcode Scanner Length: 57.0*42.0*24.4 Mm (L*W*H)
Weight: 45grams(Without Sling) Electrical: Power: DC5V Typical: 300mA DC5V
CPU: 32bit ARM CPU Data Storage: 100KB
Internal Battery: Changeable 550mah Li-ion Battery Barcode: 1d/ 2d
High Light:

handheld barcode reader


handheld scanner for warehouse

Warable Mobile 2D Bluetooth Scanner

The smart wearable data terminal is specially designed for picking and sorting application. It can enable your worker's free hands in the mutiple task. No longer waste time to pick and put the scanner down when moving the packages or meterials.
It will save more time and physical strength, and can increase by 15% -30% productivity!

It can be use for the Retail Store, Grocery Store, Confectionery Store, Convenience Store, Departmental Store, Super Markets, CostCutter Store, Pound Shop, Pharmacy Store, Medical Store, Take Aways, Fast Food, Restaurants, Hospitality Hotels, Cosmetics & Jewellery Store, Shoe Shop, Clothing Store, Garments Shop, Fashion Store, Salon & Spa Shops, Beauty Parlours, Hair Dressers, Laundries & Dry Cleaners, Cash & Carry, Whole Salers ect
2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader 0

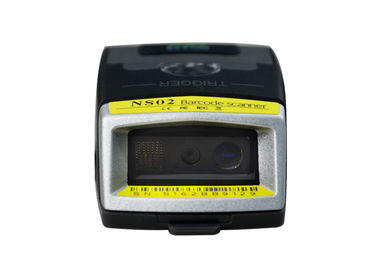

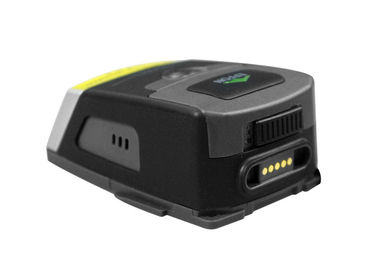

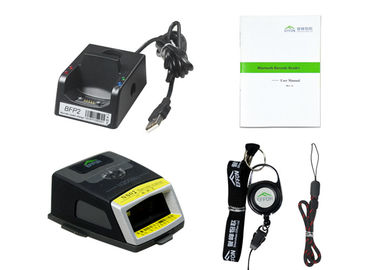

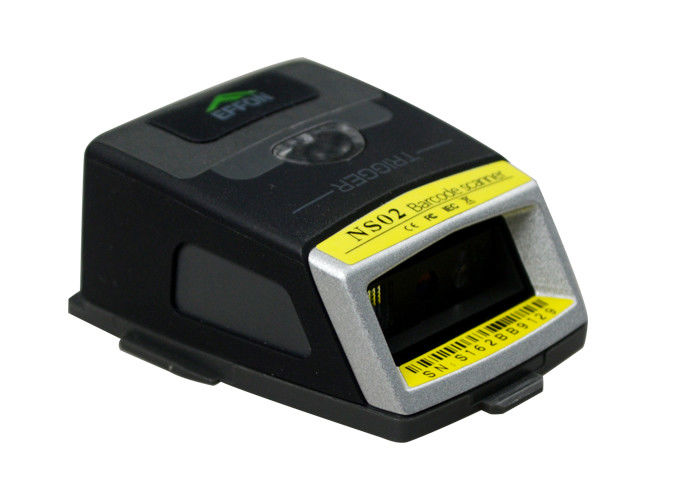

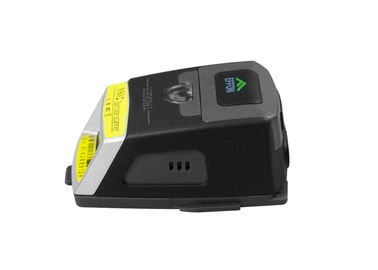

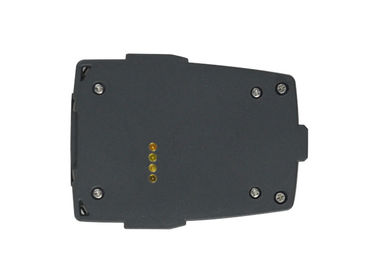

Wearable handheld Barcode Scanner hardware detail show:

1, Unlimited use trigger button
2, Retractable fall proof Lanyard
3, Rechargeable & Replaceable 550mAh Li-on battery to make the working time longer and convenient.
4, Bluetooth charge with indicator LED will more easy to understand when use it.
5, TPU+ PC materia : Pure PC material is stronger than ABS+PC and it's resistant to falling. TPU is a soft material for shockproof
* IP65 and 500 tims 1.5M Drop Testing
* SHOCKPROOF & Drop Resistence
* Waterproof and Dustproof with Ip65
* Shockproof: Circuit board with anti-vibration silicone to protect Circuit board.
2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader 1







We develop the software ourself, we can upgrade the software on line for you any time. Other barcode scanner only sale the barcode scanner (hardware) with the simple software that other company make for them. But they will cann't give you technical support when you need to combine with your system.



Product name
Wearable Ring 2D Scanner
Model name
57.0×42.0×24.4 mm (L×W×H)
45grams(Without Sling)
Polycarbonate housing with overmold( PC+TPU)
Power: DC5V Typical: 300mA DC5V
32bit ARM CPU
Data storage
100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode
Bluetooth mode, offline mode and RS232 mode(optional)
Class 3 Bluetooth HID, SPP, BLE(optional) with 30M distance, Support NFC pairing, RS232 cable(optional)
IOS, Android, Windows, Mac
Battery power
> 30 days
Charge time
2 hous
Continuous trigger
scanning interval
Decoding number
Working time
Scan Enging
Scan mode
Manual mode, Continuous, Host, Sense mode
Ambient illumination
0~107,639 lux
Scanner performance
Sensor Type
640 (horizontal) × 400 (vertical) pixels
610nm LED(Aiming LED), 660nm red LED(Ilumination)
Scanner Angle
±60°,±60°,±360°(skew, pitch, Roll)
Field of view
Horizontal: 42° , Vertical: 28°
Barcode Type
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check
ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check
Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet
Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar
Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128
Emulation Mode for UCC/EAN Composite Codes
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK
Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Decoding depth & Max. Resolution
(1 mil = 0.0254 mm)
Code 39
51mm -162mm (5mil);
Code 128
63mm -127mm (5mil);
63mm -160mm (6.6mil);
45mm - 228mm (10mil);
50mm -317mm (13mil);
Code 39
50mm - 495mm (20mil);
Data Matrix
38mm - 343mm (20mil);
QR Code
38mm -279mm (20mil).
CE, Rohs, FCC, IP65, IEC, EC/EN60950, EC/EN62471
Environmental parameters
Drop resistance
Pass 200 times 1.5m drop test
Operating : -5°C to 50°C
Storage: -20°C to 60°C
5% to 90% (non-condensing)




Postech was found in 2008 in HONGKONG. It is a well-known domestic modern enterprise focused on technology research, product development, manufacturing, sales and services of wearable barcode equipment and embedded equipment. We specialize in mag-stripe swipe card reader, wearable barcode scanner and Point of Sale peripheral products. We as an enterprise do early independent research and development of wearable barcode equipment.
2d Usb Barcode Scanner Android Handheld Laser Bluetooth Barcode Reader 2
Core Competencies and Advantages

The company has established good working relationships with BMW, Wal-Mart, other domestic and foreign system integrators and independent software vendors. The company is in the process of establishing a dealer network throughout Europe and the Americas and is also in the process of establishing a comprehensive after sales service system to ensure rapid response and service to customers. In addition to all this, our company also has its own iOS, Android software, new product development capabilities along with a team of hardware engineers and associated infrastructure for testing and development. OEM/ODM flexible customization services in bulk or in small batches can be performed for customers from all walks of life. We offer 100% assistance to quickly turn around any customization requirements.

Company sercive:



1. The most favourable price and Right products.


2. Online technical support and Software upgrade


3. After-Sale Services: 2 years quality gurantee, within the first year, if there is any quality problem, we bear the shipping charges back and forth and offer repair services for free.

4. The most safety ways: Alibaba new service for payment(trade assurance) which is safe delivery!

5. 10 years experience techincal team serve you in any time


6. Small order, OEM/ODM Acceptable
