Name: 1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved
Brand: Effon
SKU: PS02

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved

Product Details:

Place of Origin:	China
Brand Name:	Effon
Certification:	CE, FCC, RoHS, IP65
Model Number:	PS02

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiation
Packaging Details:	1pc into a retail box, 50pcs into a Carton
Delivery Time:	1 - 7 days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, Paypal
Supply Ability:	10000 pieces per month

Contact Now

Detailed Product Description

Type:	Barcode Scanner	Working Mode:	Bluetooth HID, SPP, Offline Mode
Scan Element Type:	2D Scan Engine Optional	Scan Speed:	30times/s
Power:	DC 5V	Battery:	550mAh
Indicator:	LED, Beep, Motor Inside	Application:	Logistics Industry, Store Inventory, Libary, Warehouse Etc
Scan Angle:	± 60° ,± 60° ,± 360° (skew, Pitch, Roll)	Support:	1D/ 2D Barcode, QR Code, PDF417 Code
Warranty:	2 Years
High Light:	wireless 2d barcode scanner , wireless qr barcode scanner

Hands-Free Scanning 1D 2D Barcode Scanner Reader with CE FCC RoHS Approved

The smart wearable data terminal is specially designed for picking and sorting application. It can enable your worker's free hands
in the mutiple task. No longer waste time to pick and put the scanner down when moving the packages or meterials. it will save
more time and physical strength, and can increase by 15% -30% productivity!

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 0

1. Specifications

Items	PS02 Wearable 2D Barcode Scanner
Demesion	Length:53.9mm, Width: 38mm, Height:23mm
Weight	45.65g
Electrical	Power: DC5V Typical: 300mA DC5V
Data storage	100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).
Working mode	Bluetooth mode, offline mode, BLE mode optional
Scanner performance	Sensor Type:	640 (horizontal) × 400 (vertical) pixels
	Decode Speed::	30 times per second
	ScannerAngle:	±60°,±60°,±360°(skew, pitch, Roll)
	Contrast:	>20%
Battery power	Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
	Continuous trigger scanning interval	Decoding number	Working time
	1S	10325	2.9hours
	5S	4704	8.3 hours
	10S	3871	10.7hours
	Charge time:About 2hours
1D Barcode Type	UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN, Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of 5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128 Emulation Mode for UCC/EAN Composite Codes
2D	PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post, Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
Max. Resolution (1 mil = 0.0254 mm)	Code 128	63mm -127mm (5mil);
	PDF417	63mm -160mm (6.6mil);
	PDF417	45mm - 228mm (10mil);
	100%UPC	50mm -317mm (13mil);
	Code 39	50mm - 495mm (20mil);
	Data Matrix	38mm - 343mm (20mil);
	QR Code	38mm -279mm (20mil).
OS	IOS,Android, Windows, Mac
Certificate	CE, Rohs, FCC, EN60950, IEC60825, IP64, EMC, 1.5m drop test(500 times). Utility Model Patent No.: ZL201420211350.8
Temperature	Operating: -20°C to 60°C (-4°F to 140°F); Storage: -40°C to 70°C (-40°F to 158°F)
Humidity	5% to 90% (non-condensing)

2. Product details

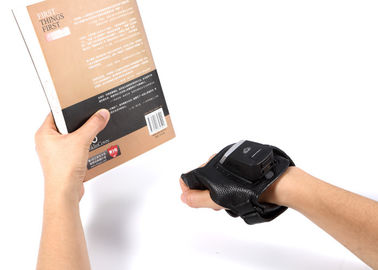

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 1

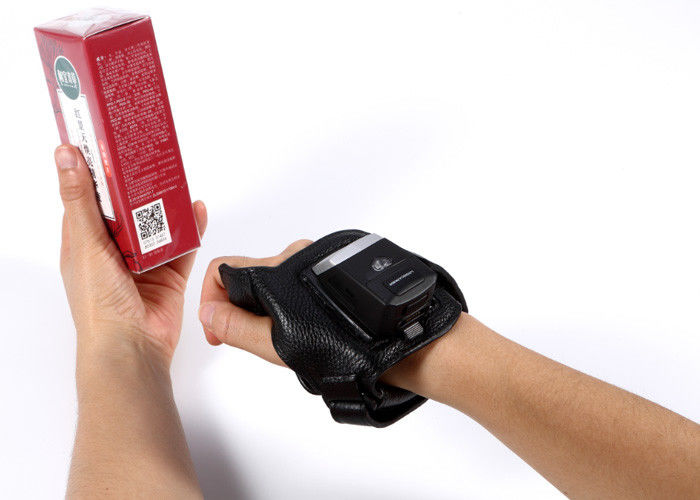

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 2

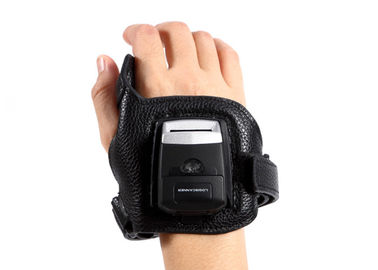

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 3

3. Features

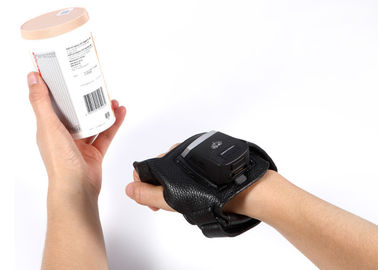

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 4

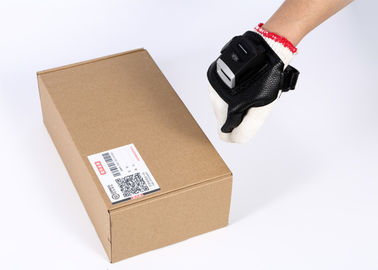

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 5

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 6

4. Package

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 7

5. About us

Shenzhen Effon LTD was founded in 2008, and registered in Hong Kong. It is a well-known domestic modern enterprise focused on technology research, product development, manufacturing, sales and services of wearable barcode equipment and embedded equipment. We specialize in mag-stripe swipe card reader, wearable barcode scanner and Point of Sale peripheral products. We as an enterprise do early independent research and development of wearable barcode equipment.

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 8

1D 2D Wireless QR Code Scanner Hands Free Scanning CE FCC RoHS Approved 9

Why Choose us

1: 2 years quality guarantee (all items will be checked 200% before shipping)
2: Directly factory manufature (quantity price will be favorable)
3: 10 years experience techincal team Online for technical support and Software upgrade
4: OEM is accepted for small order
5: Excellent service of the express which can make you receive the goods easily
6: After-sale service: We will undertake shipping charges if items caused by quality problem within 2 years
7: CE, RoHS, FCC certifcation approved
