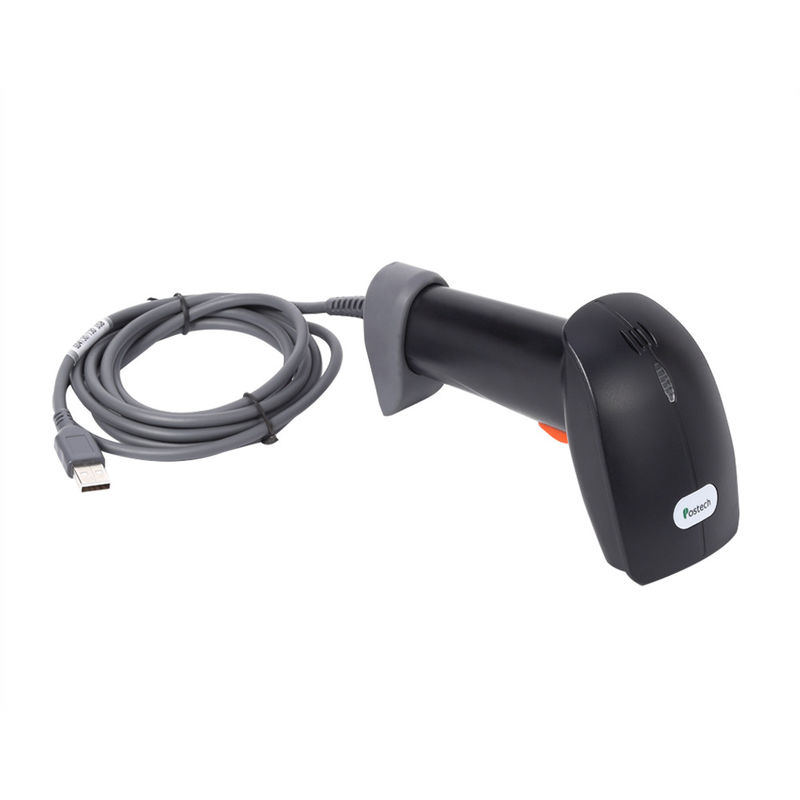

Name: Wired 2D COMS Handheld Barcode Scanner Terminal For Retail Store / Chain Stores
Brand: Effon
SKU: PTH2

Home Products Handheld Barcode Scanner

Wired 2D COMS Handheld Barcode Scanner Terminal For Retail Store / Chain Stores

Product Details:

Place of Origin:	China
Brand Name:	Effon
Certification:	CE, ROSH, FCC, IP65 Ect
Model Number:	PTH2

Payment & Shipping Terms:

Minimum Order Quantity:	4000 pcs
Price:	Negotiation
Packaging Details:	one piece in one box
Delivery Time:	1 day
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	70000pcs/ month

Contact Now

Detailed Product Description

Product Name:	2D Handheld Barcode Scanner	Model Name:	PTH2-U
Dimensions:	Length:67mm, Width: 90mm, Height:160mm	Weight:	168grams
Electrical:	Power: DC5V Typical: 180mA DC5V	Working Mode:	USB Mode
Scan Mode:	Trigger Mode	Ambient Illumination:	0～100,000lux(natural Light)
Communication:	USB	OS:	IOS, Android, Windows, Mac
High Light:	handheld qr code scanner , handheld scanner for warehouse

2D Handheld Barcode Scanner

Product Features

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;

2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;

3. Support multiple communication methods such as USB, virtual serial port;

4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;

5. Compatible with Windows, Android and Linux systems.

Product name	2D Scanner
Model name	PTH2-U
Dimensions	Length:67mm, Width: 90mm, Height:160mm
Weight	168grams
Electrical	Power: DC5V Typical: 180mA DC5V
Working mode	USB mode
Scan mode	Trigger mode
Ambient illumination	0～100,000lux(natural light)
Scanner performance	Sensor Type: 640 (horizontal) × 480 (vertical) pixels Light: white LED red LED Scanner Angle: ±65°,±65°,±360°(skew, pitch, Roll) Field of view: Horizontal: 36° , Vertical: 28° Contrast: ≥20%
Barcode Type	1D	Codabar,Code39,code32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5,Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8, EAN/JAN-13,MS,GSI DataBar Omnidirectional,GSI DataBar Limited,GSI DataBar Expanded,China Post (Hong Kong 2 of 5),Korea Post.
	2D	CodeblockA,CodeblockF,PDF417,MicroPDF417, GS1 Composite Codes,TL39, QR Code, Data Matrix,MaxiCode,Aztec,HANXIN.
Decoding depth & Max. Resolution (1 mil = 0.0254 mm)	Code 39		30mm -90mm (5mil);
	Code 39		40mm -195mm (13mil);
	QR Code		30mm -170mm (15mil).
	QR Code (Screen)		100mm -500mm (15mil).
Communication	USB
OS	IOS, Android, Windows, Mac
Certificate	CE, Rohs, FCC, EN60950, IEC60825, EMC. Utility Model Patent No.: ZL201420211350.8
Laser safety	IEC60825-1-2007, Class 1
Temperature	Operating: -20°C to +60°C ; Storage: -30°C to +70°C
Humidity	5% to 95% (non-condensing)
