|Place of Origin:||China|
|Minimum Order Quantity:||1|
|Packaging Details:||1pcs into a retail box，OEM box is accepted （According to customer request）|
|Delivery Time:||sample in stock， bulk 1-7 days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram，Paypal|
|Supply Ability:||20000 pieces per month|
|Product Name:||MS02 High Speed Scanning Warehouse Wireless Bluetooth Finger Wearable 2D Ring||Material:||TPU+PC For Barcode Reader， Genuine Leather For Glove|
|Advantage:||Handfree With Glove To Improve Working Efficiency||Application:||Logistics Industry , Inventory , Libary , Hospital Ect|
|Battery Capacity:||550mah， Last 8 Hours+||Drop Test Level:||IP65|
wearable barcode reader glove,
Ring wearable barcode reader,
IP65 wireless ring scanner

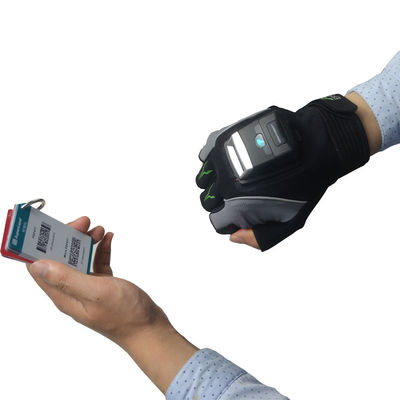

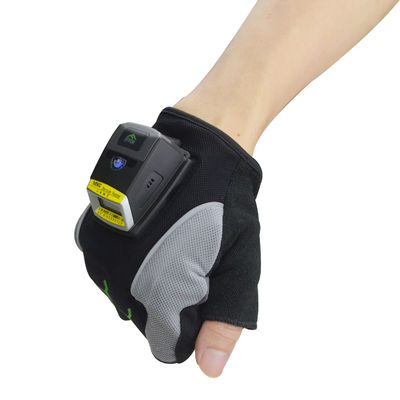

MS02 High Speed Scanning Warehouse Wireless Bluetooth Finger Wearable 2D Ring
MS02 is the upgrading version of finger trigger glove scanner , more than 10 million scanning button lifespan, with seperate charging cradle , comfortable glove, such features make it mostly suitable for Logistics warehouse / counter picking / automotive industry and so on.
|Product name||Wearable Ring 2D Scanner|
|Electrical||Power: DC5V Typical: 300mA DC5V|
|CPU||32bit ARM CPU|
|Data storage||100KB for offline mode: 6000 15 bytes barcodes(Other flash is optional).|
|Working mode||Bluetooth mode, offline mode and RS232 mode(optional)|
|Scan mode||Manual mode, Continuous, Host, Sense mode|
|Ambient illumination||0～107,639 lux|
Sensor Type: 640 (horizontal) × 400 (vertical) pixels
Light: 610nm LED
Scanner Angle: ±60°,±60°,±360°(skew, pitch, Roll) Field of view: Horizontal: 42° , Vertical: 28°
Internal Battery: Rechargeable 550mAh Li-ion Battery, Standby 30 days, working time after full charge with good decode as below:
Charge time: About 2 hours
UPC-A, UPC-E, UPC-E1, EAN-8/JAN-8, EAN-13/JAN-13, Bookland EAN, ISSN EAN,
Code 128, GS1-128(formerly UCC/EAN-128), ISBT 128, Check ISBT Table, Code 128 Reduced Quiet Zone, Code 39, Trioptic Code 39, Convert Code 39 to Code 32, Code 32 Prefix, Code 39 Check Digit Verification, Code 39 Full ASCII, Code 39 Reduced Quiet Zone, Code 93, Code 11, Interleaved 2 of 5, I 2 of 5 Readuced Quiet Zone, Discrete 2 of
5, Codabar(NW-7), CLSI Editing, NOTIS Editing, MSI, Chinese 2 of 5, Matrix 2 of 5, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar Expanded, Convert GS1 DataBar to UPC/EAN/JAN, Composite CC-C, Composite CC-A/B, Composite TLC-39, GS1-128
Emulation Mode for UCC/EAN Composite Codes
PDF417, MicroPDF417, Code 128 Emulation, Data Matrix, Maxicode, QR Code, Micro QR, Aztec, HanXin, US Postnet, US Planet, UK Postal, Japan Postal, Australia Post,
Netherlands KIX Code, USPS 4CB/One Code/Intelligent Mail, UPU FICS Postal
|Decoding depth &||Code 39||51mm -162mm (5mil);|
(1 mil = 0.0254 mm)
|Code 128||63mm -127mm (5mil);|
|PDF417||63mm -160mm (6.6mil);|
|PDF417||45mm - 228mm (10mil);|
|100%UPC||50mm -317mm (13mil);|
|Code 39||50mm - 495mm (20mil);|
|Data Matrix||38mm - 343mm (20mil);|
|QR Code||38mm -279mm (20mil).|
|Communication||Class 3 Bluetooth HID, SPP, BLE(optional) with 20M distance, RS232 cable(optional)|
|OS||IOS, Android, Windows, Mac|
CE, Rohs, FCC, EN60950, IEC60825, IP65, EMC, 1.5m drop test(200 times).
|Laser safety||IEC60825-1-2007, Class 1|
Operating: -5°C to 50°C ；
|Humidity||5% to 95% (non-condensing)|
Q1. What's your main products ?
- Laser Barcode Scanner
- Image Barcode Scanner
- Thermal Receipt Printer
- Dot -matrix Receipt Printer
- Bluetooth Printer
- Cash Register Drawer
Q2. Are you a manufacturer?
Yes, our factory located in ShenZhen .
Q3. Do you have stock products to sell?
Yes, and we also work on OEM /ODM orders, customized your brand & label as your requiment;
Q4.What's the time of delivery ?
It's subject to your order quantity and our production schedule . Usually , 3-5 working days for sample, 12-15 working days for mass production after receipt of payments .
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample?And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on
