|Place of Origin:||China|
|Certification:||CE, ROSH, FCC, IP65 Ect|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||one piece in one box|
|Delivery Time:||1 day|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||70000pcs/ month|
|Product:||High-performance 2d Qr Code Barcode Scanning Hands Free Desktop Bar Code Readers||CPU:||32bit|
|Camera:||640 X480 CMOS, 30fps||Angel:||31°|
|ReReading Angel:||360, ±55°||Working Voltage:||USB5V|
|Working Current:||125mA||Communication Port:||USBHID-KBW|
|Cable Length:||2 Meters||Dimension:||110mmL*71mmW*158mmH|
handheld barcode reader,
handheld scanner for warehouse
Hand-Free Two-Drectional Barcode scanner 2D/QR Bar Code Reader

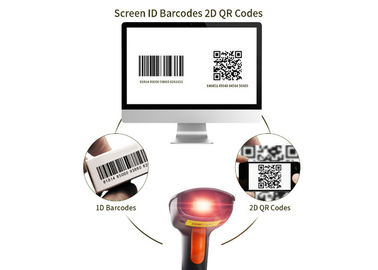

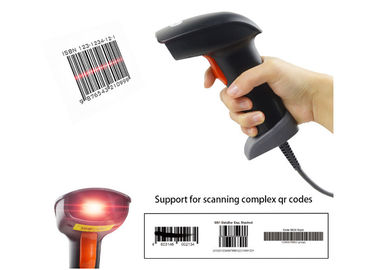

1. Strong reading performance, quickly read the main code and two-dimensional code on paper, computer or mobile phone screen;
2. Quickly read payment codes, electronic rolls, coupons, etc. on the screen of mobile devices, which can be used for online payment;
3. Support multiple communication methods such as USB, virtual serial port;
4. Applicable to various lighting environments (including completely dark), High temperature and humidity, and various harsh and complex working environments, such as: shock, vibration, and strong exposure;
5. Compatible with Windows, Android and Linux systems.
|Product name||2D Scanner|

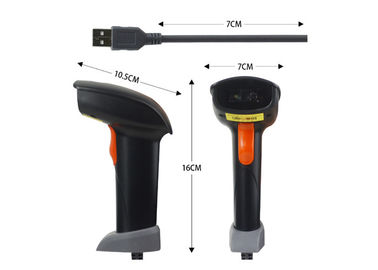

Length:67mm, Width: 90mm, Height:160mm
|Electrical||Power: DC5V Typical: 180mA DC5V|
|Working mode||USB mode|
|Scan mode||Trigger mode|
|Ambient illumination||0～100,000lux(natural light)|
Sensor Type: 640 (horizontal) × 480 (vertical) pixels
Light: white LED
Scanner Angle: ±65°,±65°,±360°(skew, pitch, Roll)
Field of view: Horizontal: 36° , Vertical: 28°
|Barcode Type||1D||Codabar,Code39,code32 Pharmaceutical(PARAF), Interleaved 2 of 5,NEC 2 of 5,Code93, Straight 2 of 5 Industial, Straight 2 of 5 IATA, Matrix 2 of 5, Code 11,Code 128,GS1-128,UPC-A,UPC-E,UCC Coupon Extended Code,EAN/JAN-8, EAN/JAN-13,MS,GSI DataBar Omnidirectional,GSI DataBar Limited,GSI DataBar Expanded,China Post (Hong Kong 2 of 5),Korea Post.|
|2D||CodeblockA,CodeblockF,PDF417,MicroPDF417, GS1 Composite Codes,TL39, QR Code, Data Matrix,MaxiCode,Aztec,HANXIN.|
Decoding depth &
(1 mil = 0.0254 mm)
|Code 39||30mm -90mm (5mil);|
|Code 39||40mm -195mm (13mil);|
|QR Code||30mm -170mm (15mil).|
|QR Code (Screen)||100mm -500mm (15mil).|
|OS||IOS, Android, Windows, Mac|
CE, Rohs, FCC, EN60950, IEC60825, EMC.
Utility Model Patent No.: ZL201420211350.8
|Laser safety||IEC60825-1-2007, Class 1|
Operating: -20°C to +60°C ;
Storage: -30°C to +70°C
|Humidity||5% to 95% (non-condensing)|
Q5. What information should I let you know if I want to get a quotation?
- The type you need, if possible, the specific product name
- Color & Interface
- Quantity of order
- Market of country If possible, let us know if you have any experience on barcode scanners business
Q6. Can I get a sample?And how can I get it? How many days will samples be finished?
Yes, samples can be provided , but to be paid by customers. Sample fee will be in formal order. Most of samples are in stock, it takes 3-6 days by express delivery.
Q7. Do you inspect the finished products?
Yes, each step of production and finished products will be carried out inspection by QC department before shipping.
Q8. What advantage do you have?
1.Full rang of barcode scanner products & Independent research and development department,Supply OEM.
2. We are a manufacturer, and it ensures we have the ability to carry out the production schedule for punctual delivery.
3. Strict QC. For each order, strict inspection will be carried out by the QC department before shipping,
4. Certificates: Kinds of Invention Patents & CE&FCC& ROSH&ISO900:2008 and so on;
