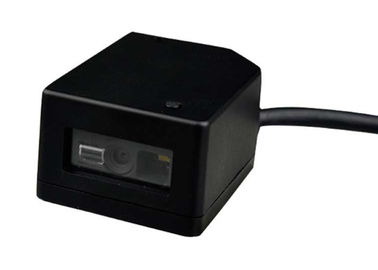

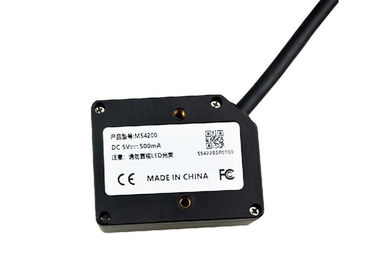

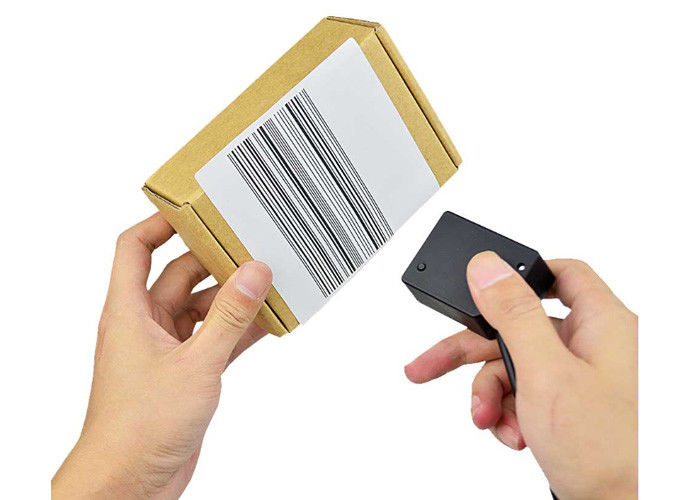

MS4200 CMOS Auto Detected Scanning Barcode Reader for Industry Conveyor
MS4200 Auto Scaning barcode reader scanner can be used for medical care kiosk /health checking kiosk/health care kiosk soulution. MS4200 is new generation barcode scanner, with fixed mount and compact design, it's suitable for all kinds of Kiosk, ATM, ticket terminal, medical device , access control machine etc.
|Voltage and Current:
||5 VDC +/-10% @ 400 mA
||640 pixels (H)x 480 pixels (V)
||Aiming: 617 nm LED; illumination: 6500K LED
|Field of View:
||40° (H) x 26° (V)
|Roll / Pitch / Yaw:
||360°, ±65°, ±60°
||25% minimum reflective difference
|Symbology Decode Capability
||UPC/EAN, UPC/EAN with supplementals, Bookland EAN, ISSN, UCC Coupon Extended Code, Code128, GS1-128, ISBT 128, Code 39, Code 39 Full ASCII, Trioptic Code 39, Code 32, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Discrete 2 of 5, Codabar, MSI, Chinese 2 of 5, GS1 DataBar variants, Korean 3 of 5, ISBT Concat
||PDF417, MicroPDF417, Composite Codes,Data Matrix, Maxicode, QR Code, MicroQR, Aztec
||up to 25 in. (63.5 cm) per second
||32° to 122° F / 0° to 50° C
||-40° to 158° F / -40° to 70° C
||5% to 95%, non-condensing
||Withstands 10Gs 0.06" double amp
|Ambient Light Immunity:
||Immune to normal lighting up to 1600 Lux. Immune to sunlight up to 86,000 Lux.
|Symbol & Density
|Code 39 (5 mil)
|100%UPCA (13 mil)
|Code 39 (20 mil)
|QR Code (20mil)
|Resolution 1D Code 39
|Resolution 2D Data Matrix
|Performance may be impacted by bar code quality and environmental conditions
Features and benefits:
l Fast speed sensor
l Industrial leading scan platform
l High speed, Omni directional scanning
l Read all mainstream 1D/2D barcodes
l Read barcode off cell phone screens
l Miniature- easy to integrate
l Extremely easy to use

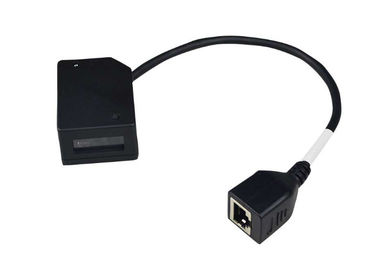

l Support RS232 and USB interface
Healthcare, Mobile coupon or ticketing (event, airline, cinema, etc), Pharmacy, Patrol Vehicles, Retail, Lottery, Banking, etc.
Shenzhen Effon LTD was founded in 2008, and registered in Hong Kong. It is a well-known domestic modern enterprise focused on technology research, product development, manufacturing, sales and services of wearable barcode equipment and embedded equipment. We specialize in mag-stripe swipe card reader, wearable barcode scanner and Point of Sale peripheral products. We as an enterprise do early independent research and development of wearable barcode equipment.
Investment in Products
Product Development, Technology, Research & Development account for 30% with a number of patents and software copyrights. The product line is complete and constantly updated. The performance continues to grow steadily as well as enjoys a good reputation in the industrial application. At the same time the card reader products have been successfully deployed in retail stores, GPS, Hotels and large-scale integration projects. Wearable devices and embedded equipment provide the software and hardware solutions exactly needed for customers in the logistics, healthcare, manufacturing, self-service kiosks, biological research equipment and other industries.
Core Competencies and Advantages
As a pre-requisite for R&D, the company’s wearable devices and Point Of Sale card readers have all passed various domestic and international certifications such as CE, FCC, ROHS. The company has established good working relationships with BMW, Wal-Mart, other domestic and foreign system integrators and independent software vendors. The company is in the process of establishing a dealer network throughout Europe and Americas and is also in the process of establishing a comprehensive after sales service system to ensure rapid response and service to customers. In addition to all this, our company also has its own iOS, Android software, new product development capabilities along with a team of hardware engineers and associated infrastructure for testing and development. OEM/ODM flexible customization services in bulk or in small batches can be performed for customers from all walks of life. We offer 100% assistance to quickly turn around any customization requirements.
Why choose us?
1: 2 years quality guarantee (all items will be checked 200% before shipping)
2: Directly factory manufature (quantity price will be favorable)
3: 10 years experience techincal team Online for technical support and Software upgrade
4: OEM is accepted for small order
5: Excellent service of the express which can make you receive the goods easily
6: After-sale service: We will undertake shipping charges if items caused by quality problem within 2 years
7: CE, RoHS, FCC certifcation approved
